Residential Replacement Parts
Why take a chance of buying the wrong part at a big box store when you can talk to the experts and get the part you need at a price you’ll love.
We stock a range of replacement parts for lack and galvanized chain link fences and gates.
Chain Link Fence Parts
Rail End Cap
Fastens chain link mesh to top rails, line posts and bottom bracing wire.
| 1-5/16 | RE01560 | RE01561 |
| 1-11/16 | RE01160 | RE01160 |

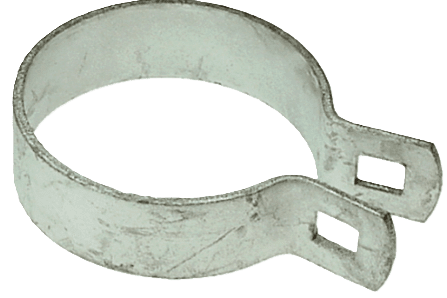

Brace Band
*Also known as Center Band
Used in conjunction with a Rail End Cap to attach the top rail to the Terminal Post
| 1-7/8 | CB01780 | CB01781 |
| 2-3/8 | CB02380 | CB02381 |
| 3-1/2 | CB03120 | CB03121 |

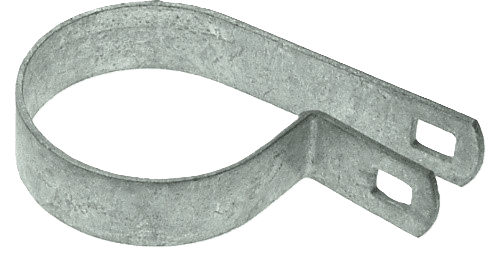

Tension Band
*Also known as Offset Band
Helps secure a Chain Link Fabric to a Terminal Post by holding the Tension Bar in place.
# Per Post:Â Height of the fence (in feet) minus one
| 1-7/8 | OB01780 | OB01781 |
| 2-3/8 | OB02380 | OB02381 |
| 3-1/2 | OB03120 | OB03121 |
Tension Band
*Also known as Dome Cap, Post Cap
Sits on top of the Terminal Post – serves to keep dirt, water, and insects out of the posts
| 1-7/8 | TC01780 | TC01781 |
| 2-3/8 | TC02380 | TC02381 |
| 3-1/2 | TC03120 | TC03121 |
Line Post Cap
*Also known as Loop Cap
Line Post Caps are used to cap the top of line posts and allow the top rail or a top tension wire to slide through
| 1-7/8 | LP01780 | LP01781 |
| 1-7/8LARGE | LP0178L | *1-11/16 Rail |
| 2-3/8 | LP02380 | LP02381 |

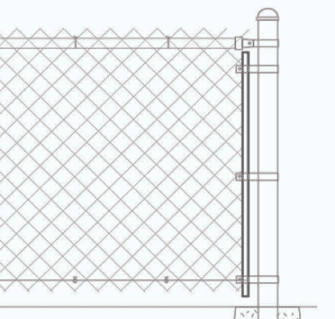

Tension Bar
Tension bars are used vertically to secure chain link fabric / wire ends to Terminal Post
| 4’ Tension Bar | TB580420 | TB580421 |
| 5’ Tension Bar | TB580600 | TB580601 |
| 6’ Tension Bar | TB580720 | TB580721 |
Â

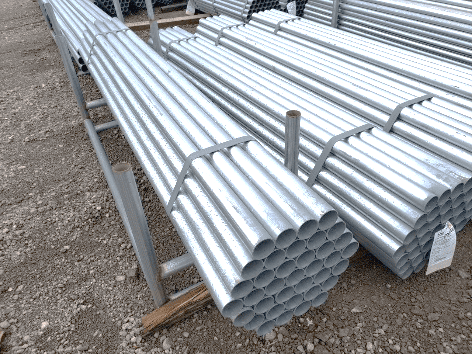

Posts
Also known as tubing, we carry both galvanized and black posts in an assortment of diameters and lengths.

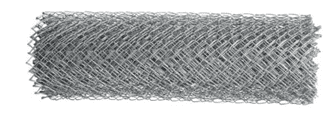

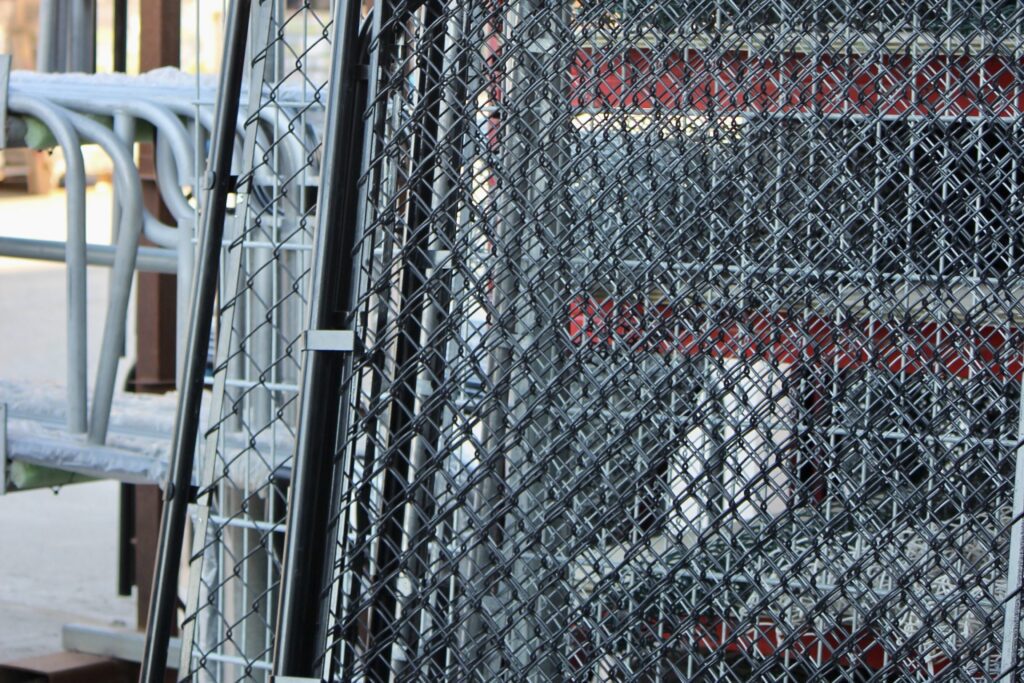

Chain Link Mesh
Also known as Fabric, Weave, we make ours right here in Winnipeg.
Available in 50′ rolls, select from galvanized or coated black vinyl and in 4′, 5′ or 6′ heights.
Residential Gate Parts
Gate Catch
Latch catch clamps around gate post & is used to hold the finger latch in place when a gate is closed
The kit in ABM will default to a 2-3/8 size – change accordingly.
| 1-7/8 | LC01780 | LC01781 |
| 2-3/8 | LC02380 | LC02381 |

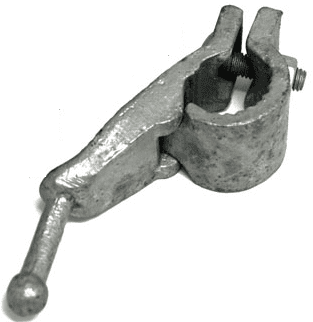

Finger Catch
Finger latch clamps around residential frame & attaches to the latch catch that is clamped to a gate post
Newer alternative to the fork latch
| 1-1/4 | DL01140 | DL01141 |
Â

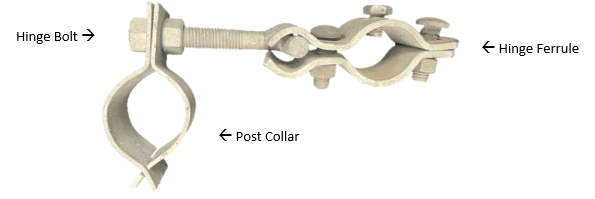

Hinge Bolt (X2)
Male Gate Hinge attaches to the Post Collar to allow the gate to swing freely
Nuts and bolt come with
| 1/2X 3 | HB01230 | HB01231 |

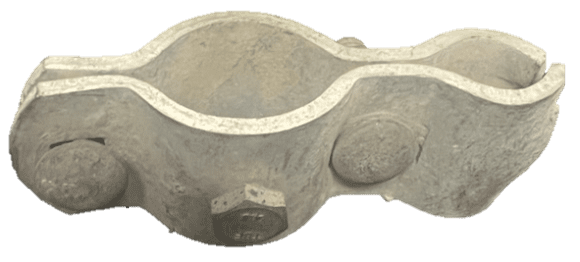

Hinge Ferrule (X2)
Also known as a Residential Frame Collar
Clamps around the gate frame and sits on a hinge bolt allowing the gate to swing open or closed.
| 1 5/16 X 1/2 | HB01230 | HB01231 |
Post Collar (X2)
Used to hang residential swing gates onto the post
| 1-7/8 | PC01780 | PC01781 |
| 2-3/8 | PC02380 | PC02381 |
