Welded Wire Fences Winnipeg
When it comes to form and function Rampart Welded Wire has you secured. Cutting through welded mesh is time-consuming and difficult. Rampart Welded Wire adds beauty and elegance to every property it protects.

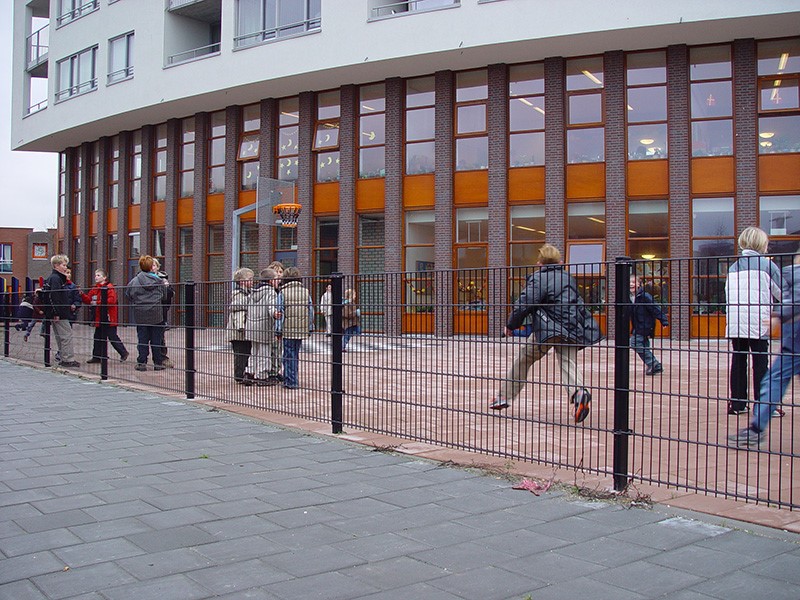

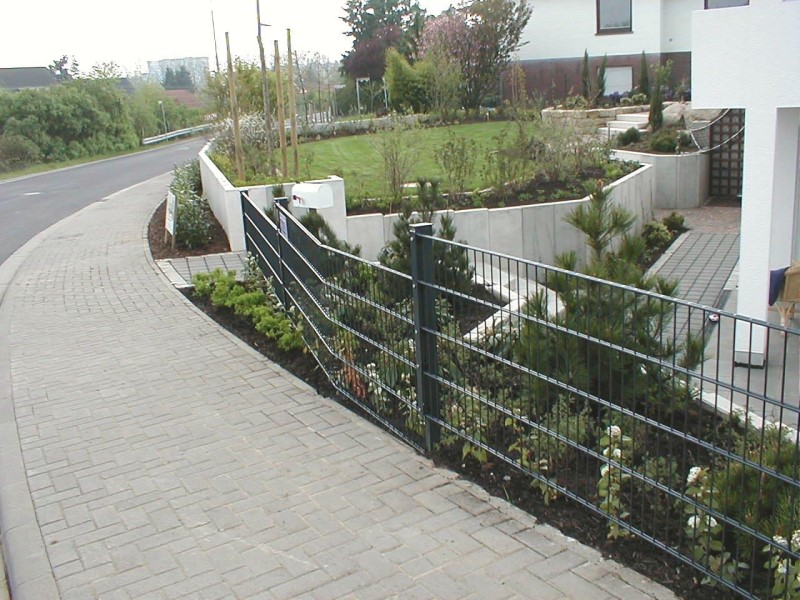

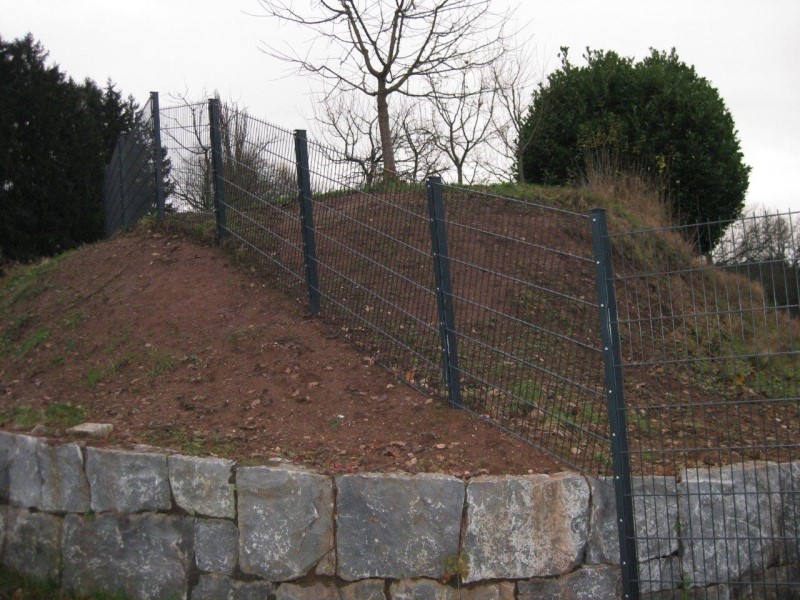

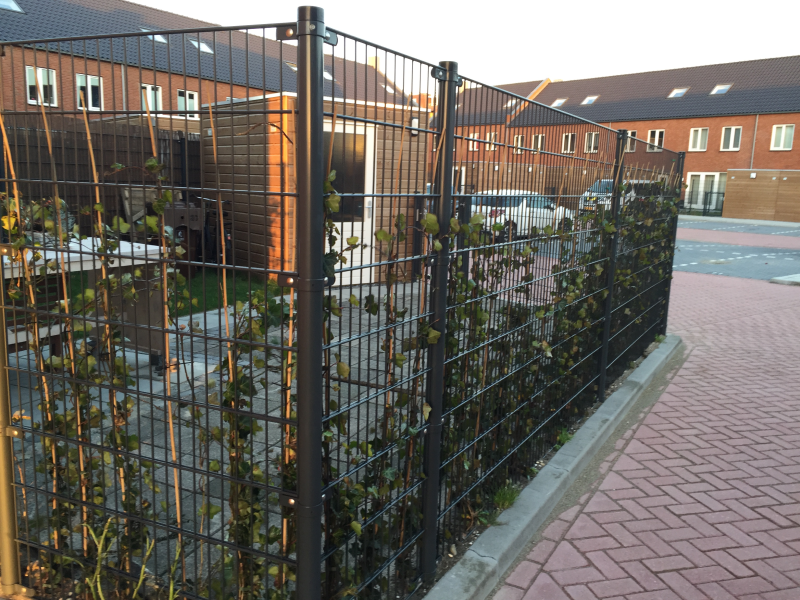

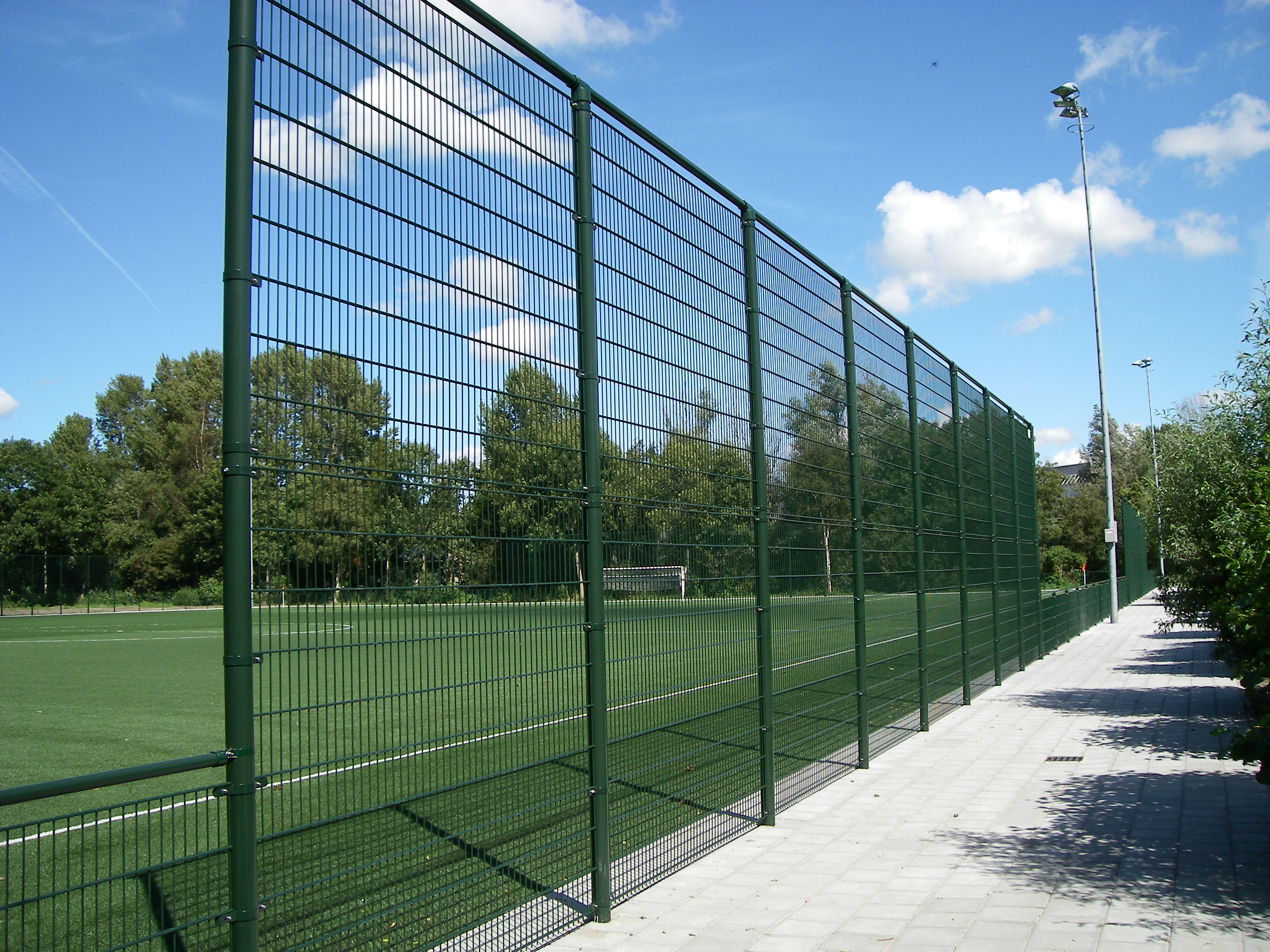

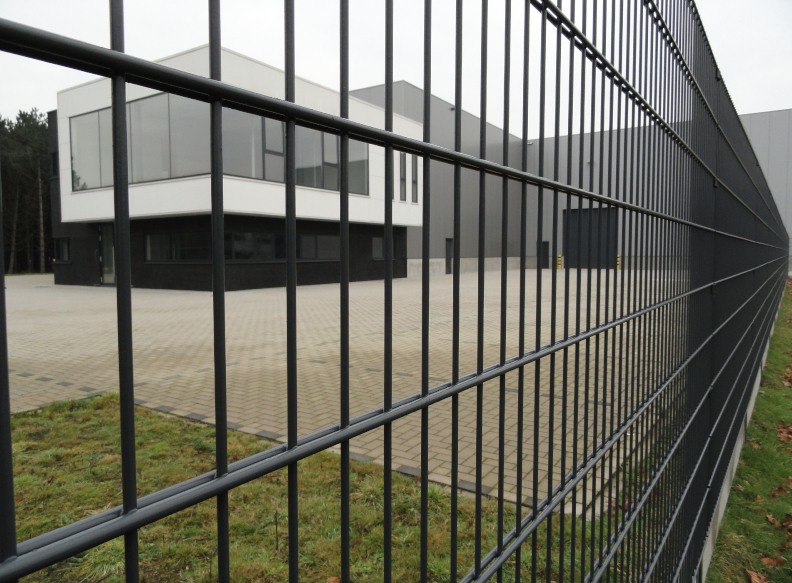

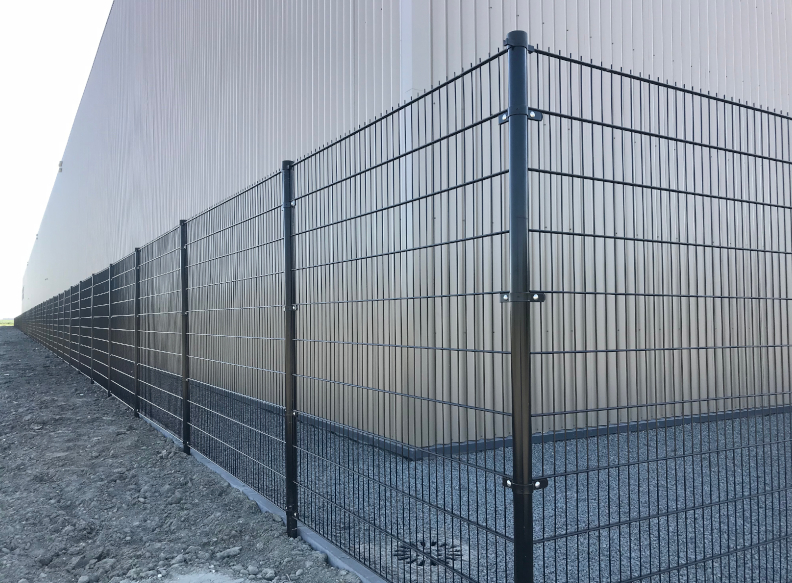

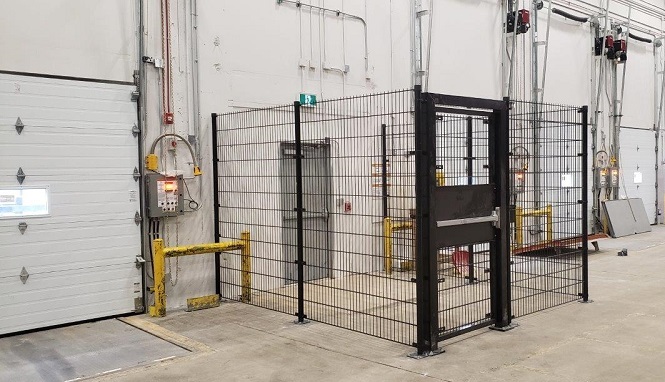

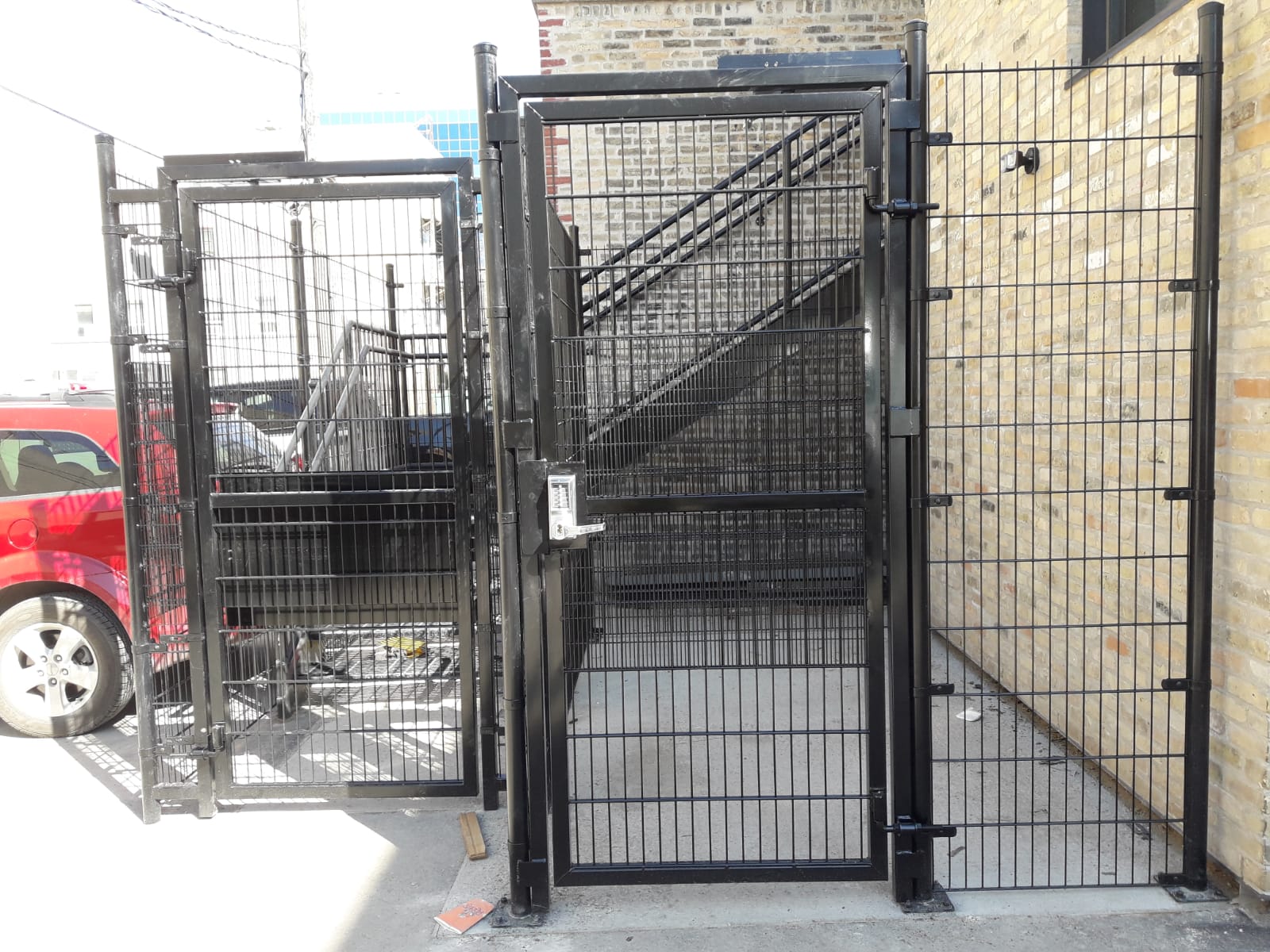

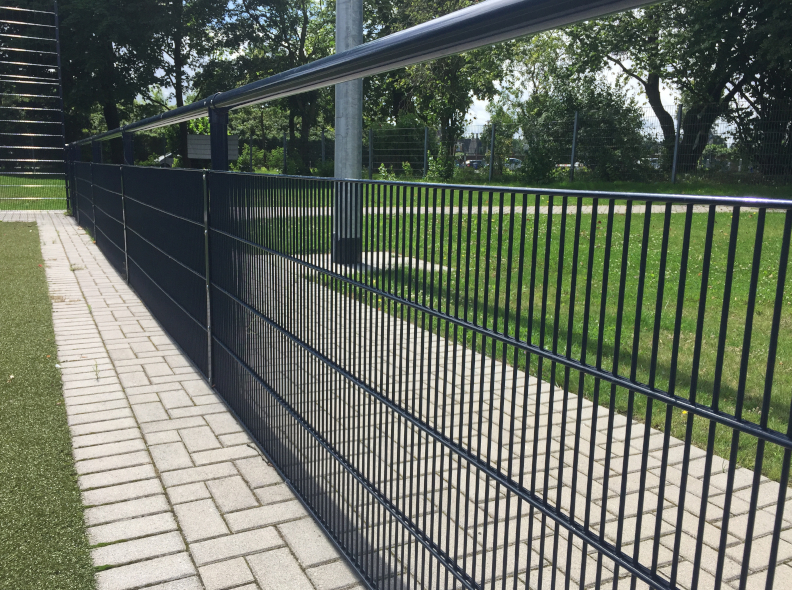

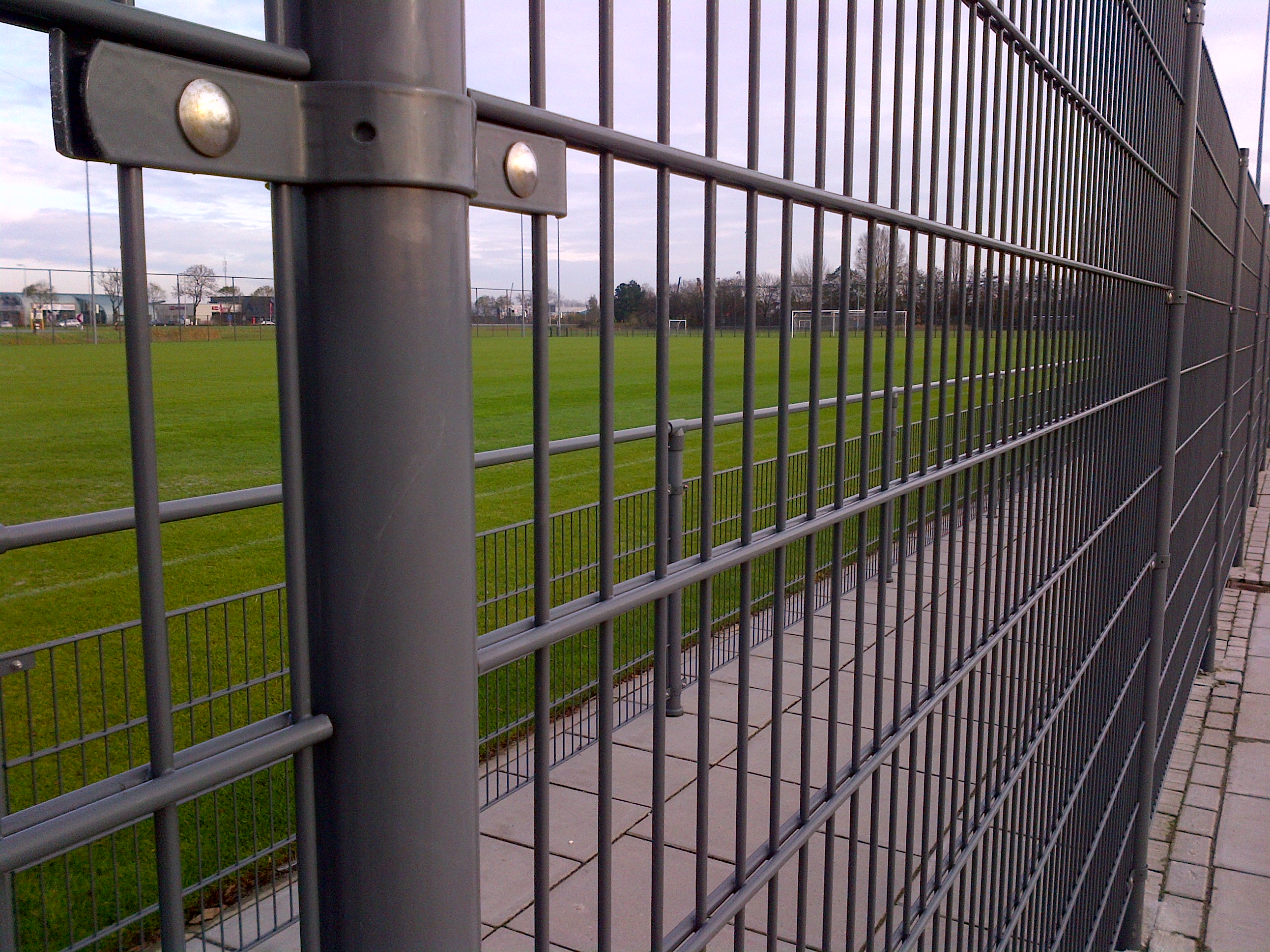

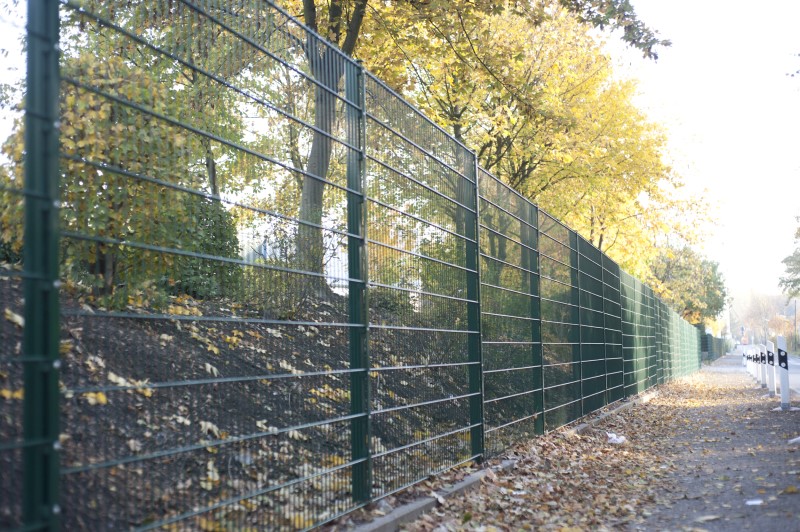

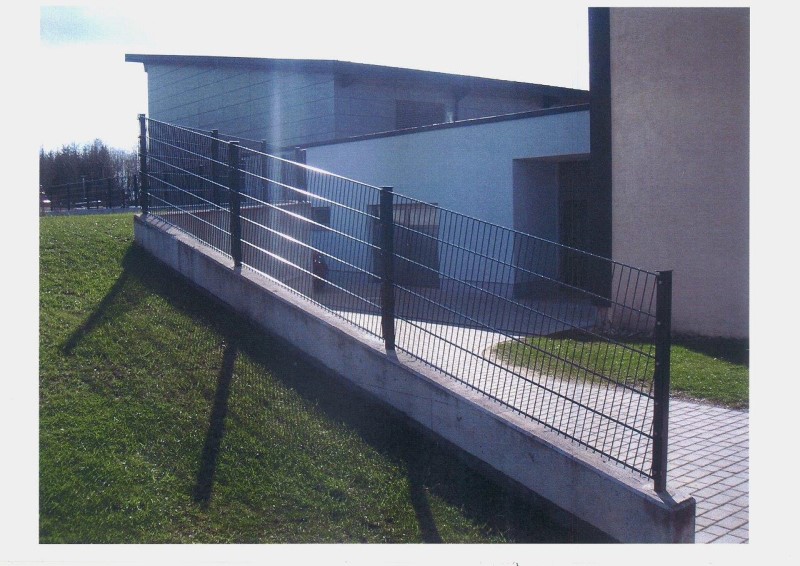

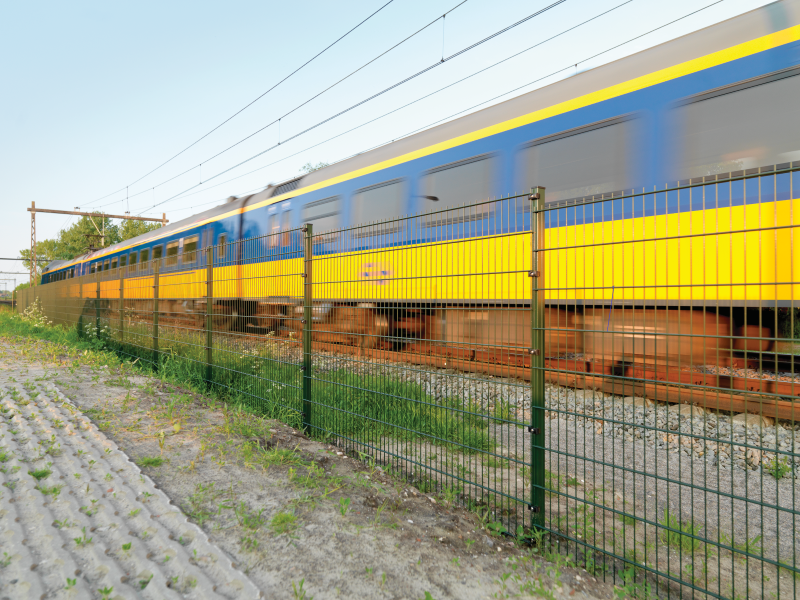

Rampart 280 - Double Wire Fencing
RAMPART 280 panels combine beauty with our strongest double wire panel. The welding of the wire interfaces are intended for intense security use and are made to resist the onslaught of even the most motivated trespassers.
Recommended Application
- Airports
- Parking facilities
- Commercial and industrial properties
- High risk areas
Technical Specifications
| Technical Data | Rampart 280 Specification |
|---|---|
| Mesh Opening | 2" x 8" (50 mm x 200 mm) |
| Gauge of Horizontal Wire | 2 x 0 GA (8 mm) |
| Gauge of Vertical Wire | 1 x 4 GA (6 mm) |
| Standard Height | 4', 6', 8' (1230 mm, 1830 mm, 2430 mm) |
| Standard Length | 8'2" (2508 mm) |
| Finish | Galvanized; Powder Coat |
Downloads
- Rampart Welded Wire - Brochure (PDF 0.3MB)
- Welded Wire Lookbook
- Bracket Brochure
- Welded Wire Inserts Brochure
- Rampart 280 - Panel Drawing (PDF 0.1MB)
- Rampart 280 - Round Post and Bracket Drawing (0.1MB)
- Rampart 280 - 2" Square Post and Bracket Drawing (0.1MB)
- Rampart 280 - 3" Square Post and Bracket Drawing (0.1MB)
- Rampart 280 - Specification (PDF .28MB)
