Rampart Welded Wire in Winnipeg
When it comes to form and function Rampart Welded Wire has you secured. Cutting through welded mesh is time-consuming and difficult. Rampart Welded Wire adds beauty and elegance to every property it protects. For rampart welded wire projects outside of Manitoba, Canada, please contact our sister company, Wallace Perimeter Security.

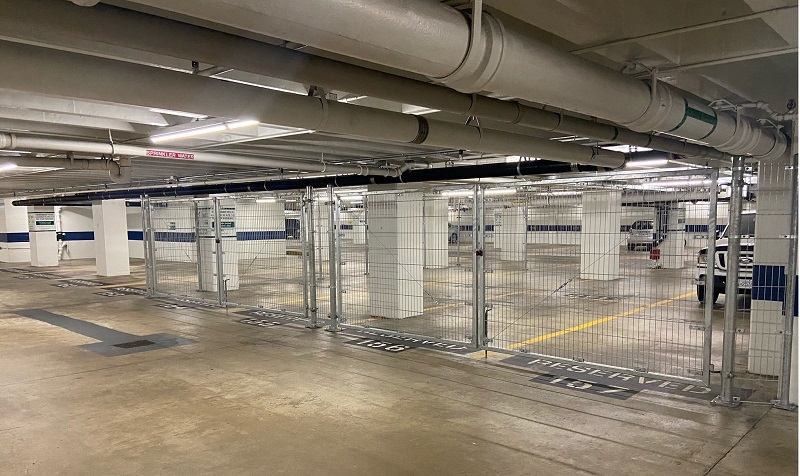

Rampart 284 - Double Welded Wire Fencing in Winnipeg
RAMPART 284 panels are a great upgrade to chain-link fencing. Its double-wire design provides strength, rigidity, and stability. It is the most cost-effective solution when your project demands a style that chain-link just can't provide.
Recommended Application
- Retrofit existing chain-link applications that require a more enhanced appearance and security
Technical Specifications
| Technical Data | Rampart 284 Specification |
|---|---|
| Mesh Opening | 2" x 8" (50 mm x 200 mm) |
| Gauge of Horizontal Wire |
2 x 4 GA (6 mm) |
| Gauge of Vertical Wire | 1 x 6 GA (5 mm) |
| Standard Height | 4', 6', 8' (1230 mm, 1830 mm, 2430 mm) |
| Standard Length | 8'2" (2508 mm) |
| Finish | Galvanized; Powder Coat |
Downloads
- Rampart Welded Wire - Brochure (PDF 0.3MB)
- Welded Wire Lookbook
- Bracket Brochure
- Welded Wire Inserts Brochure
- Rampart 284 - Panel Drawing (PDF 0.1MB)
- Rampart 284 - Round Post and Bracket Drawings
- Rampart 284 - 2" Square Post and Bracket Drawing (0.1MB)
- Rampart 284 - 3" Square Post and Bracket Drawing (0.1MB)
- Rampart 284-Specification (PDF .28MB)
