Folding gates are designed to save space and time. The quick open/close cycle helps to accurately control access at the busiest traffic environments. Folding Gates do not require as much room as other gates therefore saving valuable space for other uses. The compact installation allows effective security installations in the most confined spaces.
Folding gates are available in a variety of models to suit many applications and budgets. The gates have nearly limitless design options to match any project exterior. Factory assembly and testing ensures a smooth and reliable installation.
The PDXT Series SpeedGate
With an open or close cycle-time of less than 7 seconds, the bi-fold SpeedGate ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
Features
- Unlimited head room
- Drive motor secured inside column
- Minimal footprint
- Variable frequency drive
Applications
- Airports
- Seaports
- Chemical and petroleum facilities
- Water treatment facilities
- Public transportation
Options
- Tailgate detection and anti-tailgate
- Traffic lights (bi-directional)
- Uninterruptible power supply (UPS)
- Safety photo cell
- Strobe light
- Detection loops
- Cold-weather kit
- Ventilation kit
Technical Specifications
| Technical Data | PDXT Series Specifications |
|---|---|
| Max Height | 10' |
| Max Width | 23' |
| Opening Speed | 7 seconds |
| Finish | Hot dip galvanized, Powder coat options |
| Power Requirements | Voltage 208-240 V, Frequency 60 HZ, Current 15 AMP dedicated circuits, Single phase |
| Hydraulic Option | Yes |
| Battery Back-Up | Add on |
Listed to UL 325 (class 1, 2, 3 & 4)
Downloads
- PDXT SpeedGate - Brochure (PDF 0.5MB)
- PDXT SpeedGate - Specifications (Word)
- PDXT SpeedGate - Specifications (PDF 0.28MB)
- PDXT SpeedGate - Drawing (PDF 0.9MB)
- Complete SpeedGate Reference Manual-REV 1.5
- Installation Guide – PDXT Series SpeedGate
- PDXT SpeedGate - CAD Drawing 1 of 6 (DWG 0.7MB)
- PDXT SpeedGate - CAD Drawing 2 of 6 (DWG 1.2MB)
- PDXT SpeedGate - CAD Drawing 3 of 6 (DWG 0.4MB)
- PDXT SpeedGate - CAD Drawing 4 of 6 (DWG 0.6MB)
- PDXT SpeedGate - CAD Drawing 5 of 6 (DWG 1.8MB)
- PDXT SpeedGate - CAD Drawing 6 of 6 (DWG 0.4MB)
- Installation & Maintenance Manual
- Automatic Gate Lookbook

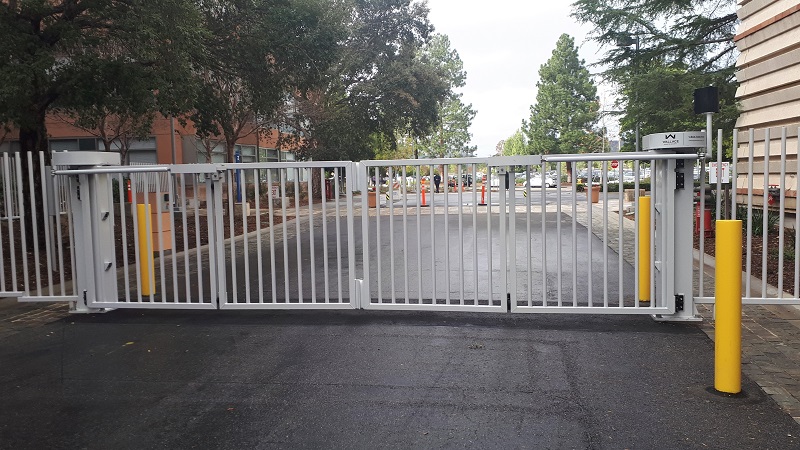

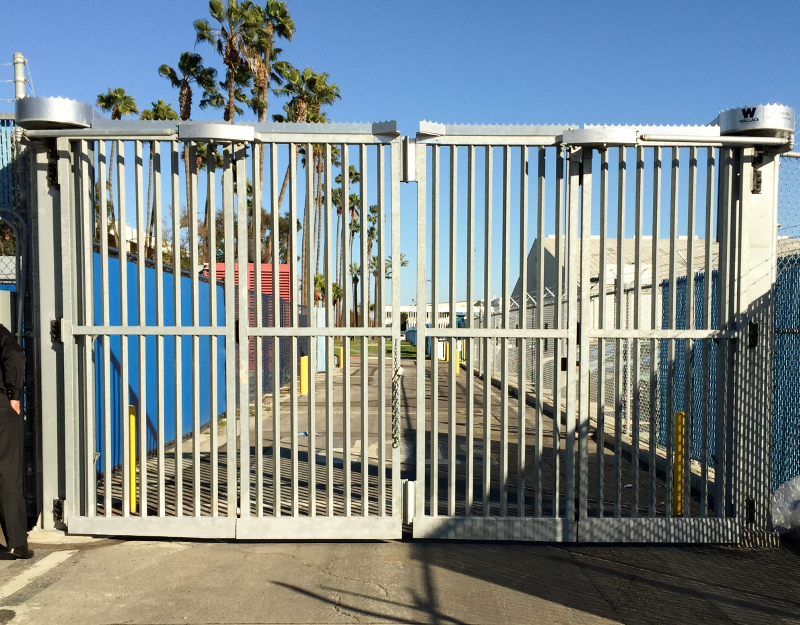

Gallery
PDXT Series Videos
PDXT vs FoldSmart
PDXT SpeedGate Open & Close Cycle
PDXT Features & Benefits
PDXT Series SpeedGate
Wallace and Wallace PDXT Series SpeedGate offers unlimited head room, requires a minimal footprint, and can open up to 23' in just 7 seconds.
Trackless SpeedGate
Explore the cutting-edge design and functionality of the Trackless SpeedGate by Wallace and Wallace Gates. The Trackless SpeedGate offers efficiency and security without the need for ground tracks, making it ideal for various installations.
