Commercial Automated Gates Winnipeg
Folding gates are designed to save space and time. The quick open/close cycle helps to accurately control access at the busiest traffic environments. Folding Gates do not require as much room as other gates therefore saving valuable space for other uses. The compact installation allows effective security installations in the most confined spaces.
Folding gates are available in a variety of models to suit many applications and budgets. The gates have nearly limitless design options to match any project exterior. Factory assembly and testing ensures a smooth and reliable installation.
The PDTT SpeedGate
With an open or close cycle-time of less than 7 seconds, the bi-fold SpeedGate ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
Features
- Drive motor secured inside column
- Top track for add on security
- Minimal footprint
- Variable frequency drive
Applications
- Corrections
- Police
- Courthouses
Options
- Tailgate detection and anti-tailgate
- Traffic lights (bidirectional)
- Uninterruptible power supply (UPS)
- Safety photo cell
- Strobe light
- Detection loops
- Cold-weather kit
- Ventilation kit
Technical Specifications
| Technical Data | PDTT Series Specifications |
|---|---|
| Max Height | 16' |
| Max Width | 24' |
| Opening Speed | 7 seconds |
| Finish | Hot dip galvanized, Powder coat options |
| Power Requirements | Voltage 208-240 V, Frequency 60 HZ, Current 15 AMP dedicated circuits, Single phase |
| Hydraulic Option | Yes |
| Battery Back-up | Add on |
Listed to UL 325 (class 1, 2, 3 & 4)
Downloads
- PDTT SpeedGate - Brochure (PDF 0.5MB)
- PDTT SpeedGate - Specifications (PDF 0.2MB)
- WPS SpeedGate PDTT Specifications
- PDTT SpeedGate - Drawing (PDF 1MB)
- Complete SpeedGate Reference Manual-REV 1.5
- Service Bulletin - REMOVE All Motor Plugs Before Running Gate
- Installation Guide – PDTT Series SpeedGate
- PDTT SpeedGate - CAD Drawing 1 of 6 (DWG 2.35MB)
- PDTT SpeedGate - CAD Drawing 2 of 6 (DWG 4.49MB)
- PDTT SpeedGate - CAD Drawing 3 of 6 (DWG 2.09MB)
- PDTT SpeedGate - CAD Drawing 4 of 6 (DWG 1.95MB)
- PDTT SpeedGate - CAD Drawing 5 of 6 (DWG 1.57MB)
- PDTT SpeedGate - CAD Drawing 6 of 6 (DWG 0.12MB)
- Automatic Gate Lookbook

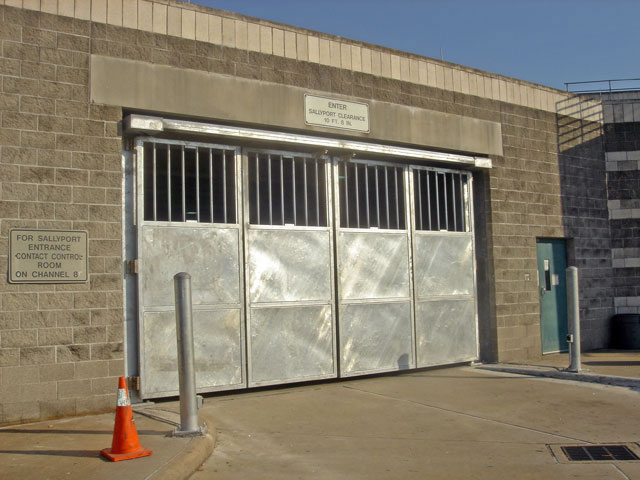

Gallery
PDTT Series Videos
PDTT Top Track SpeedGate | Wallace and Wallace Gates
The PDTT Series Top Track SpeedGate has an open or close cycle-time of less than 7 seconds. This ensures minimal site exposure, virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
SpeedGate and Barrier Arm Sallyport | Wallace and Wallace Gates
Discover the impressive capabilities of the SpeedGate with Barrier Arm by Wallace and Wallace Gates. See how the SpeedGate offers rapid, efficient access control, perfect for high-traffic areas. Paired with the Barrier Arm, this system provides enhanced security and streamlined traffic management.
