Recreational Chain Link Fences Winnipeg
Galvanized chain link fence is a strong and durable product that is maintenance-free and is a cost-effective way to add security and determine property lines.

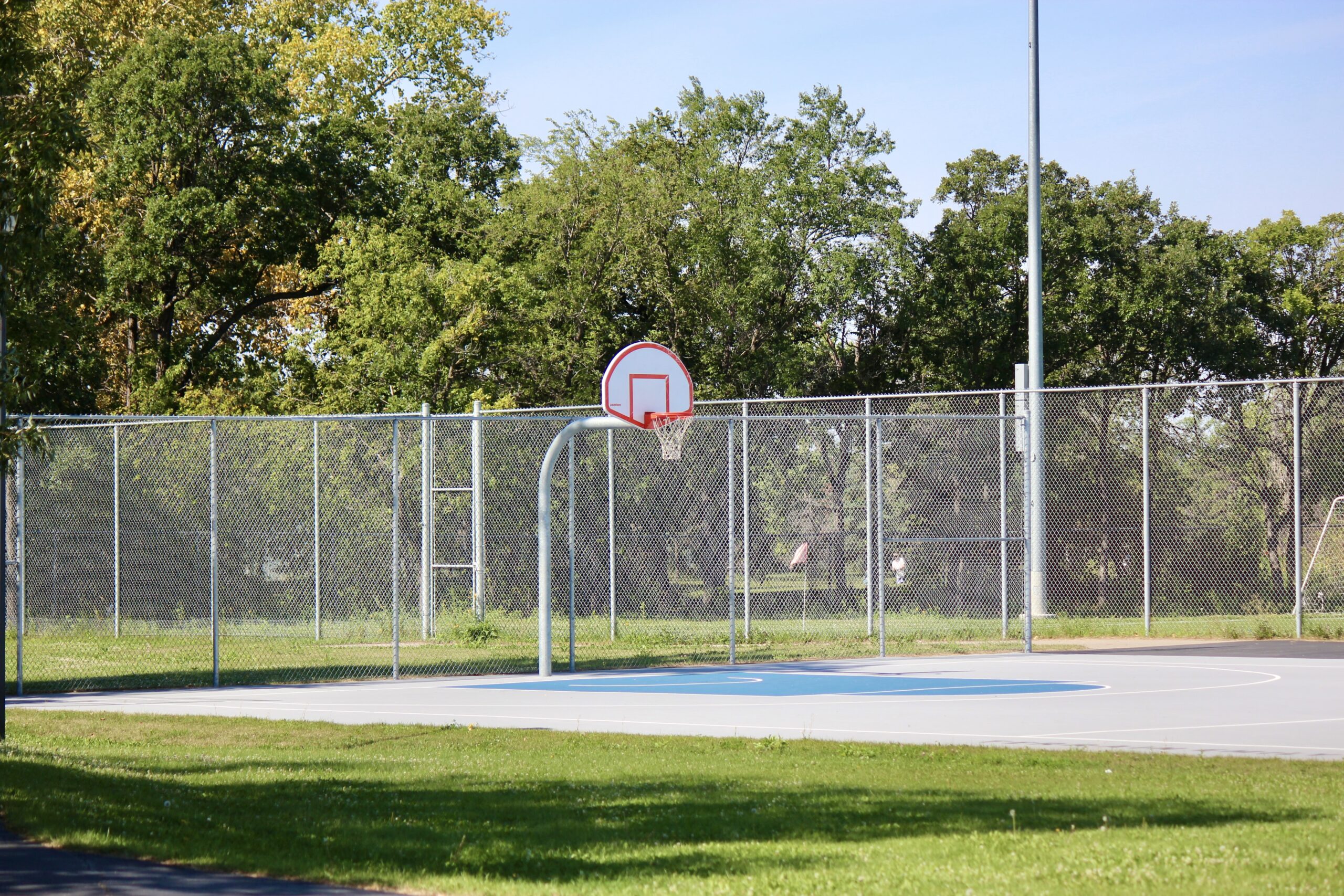

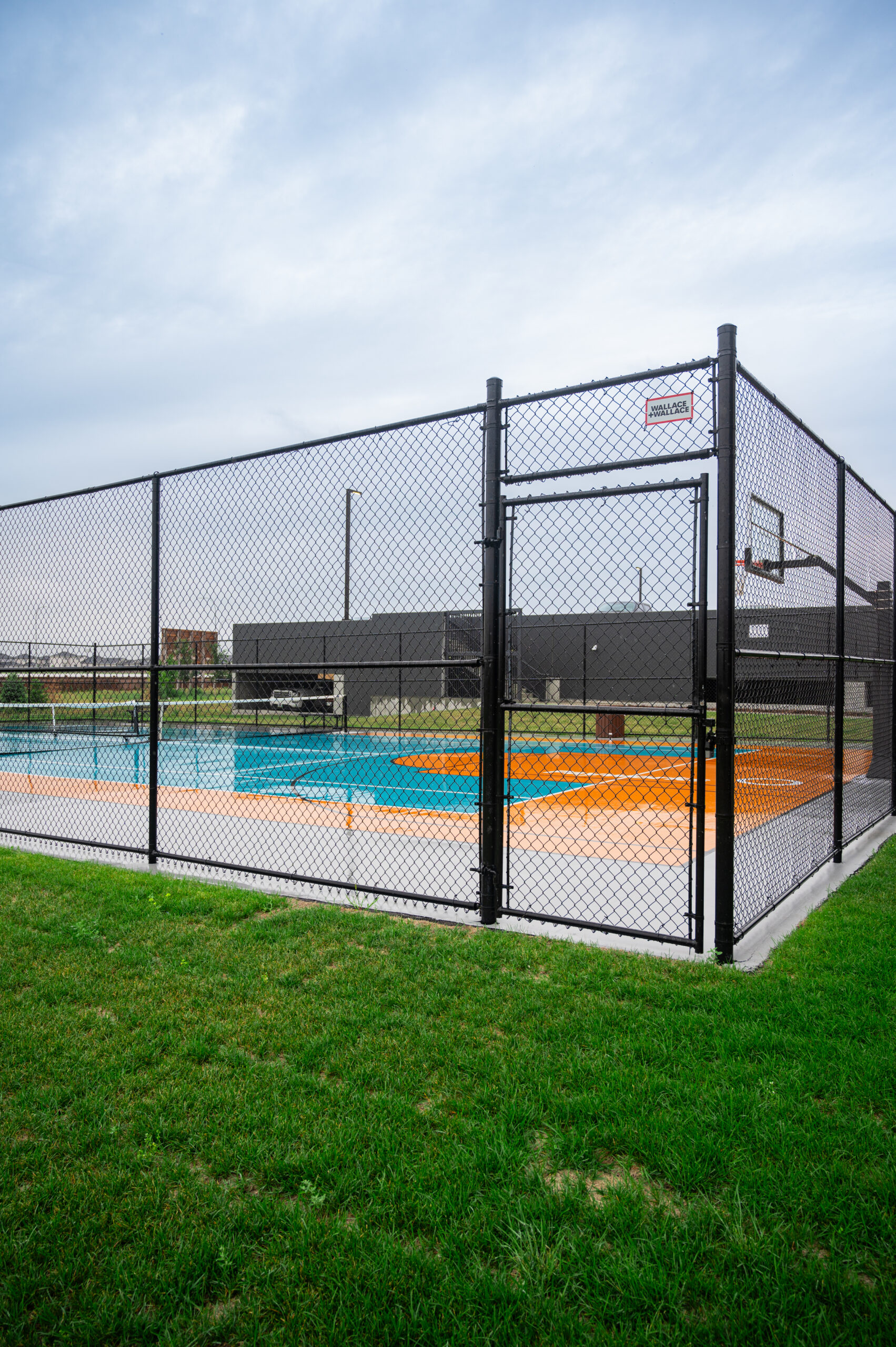

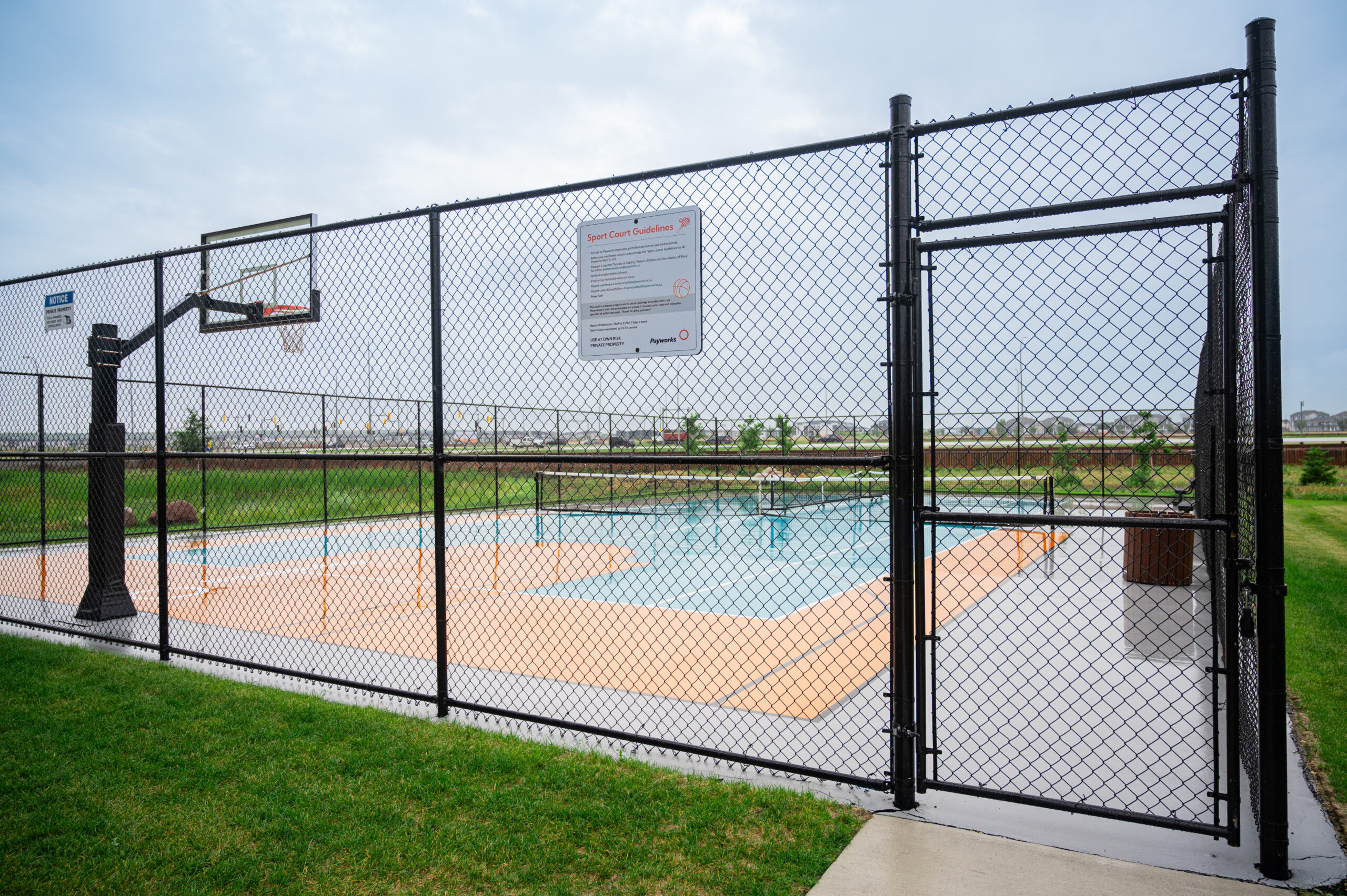

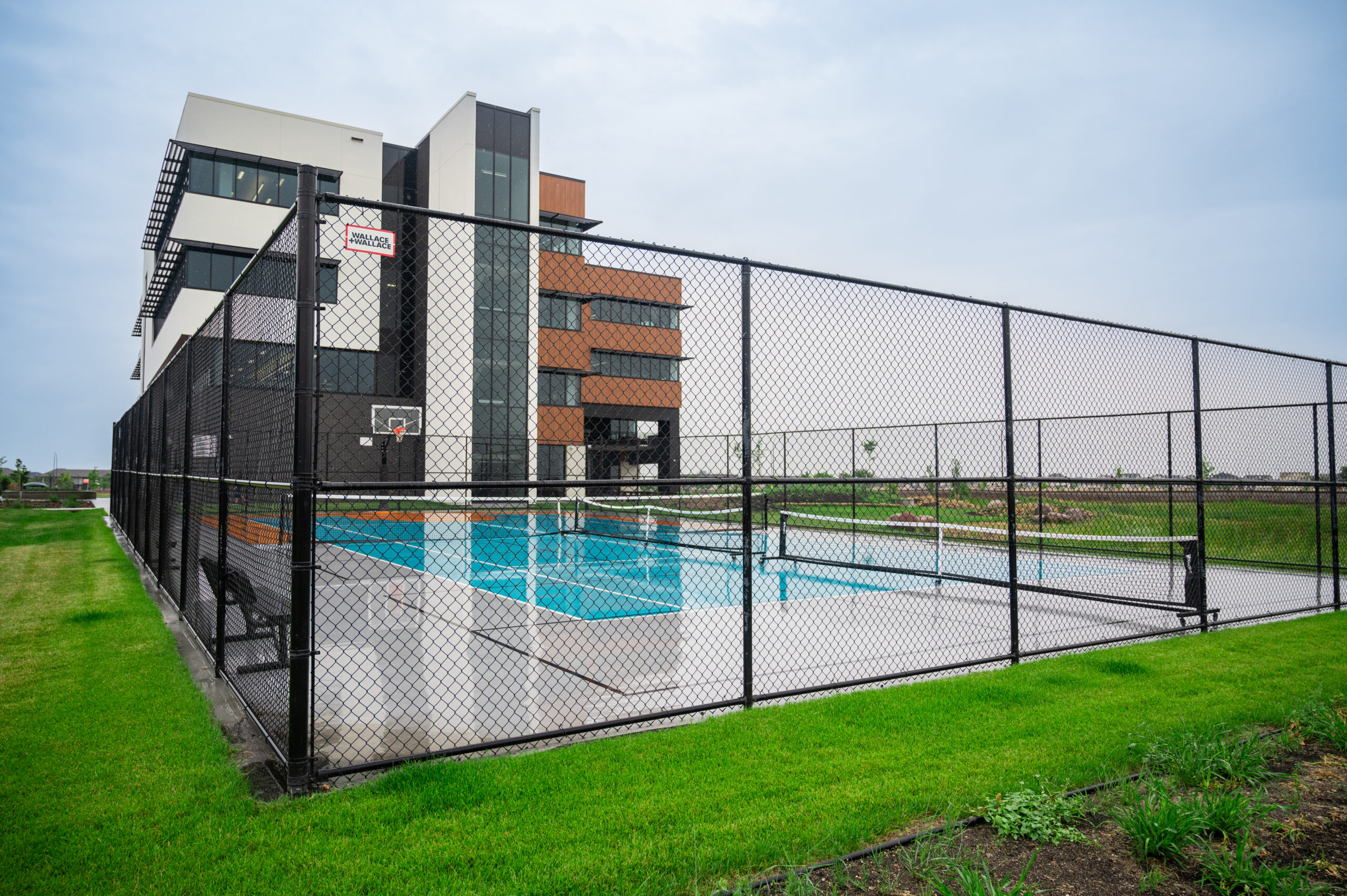

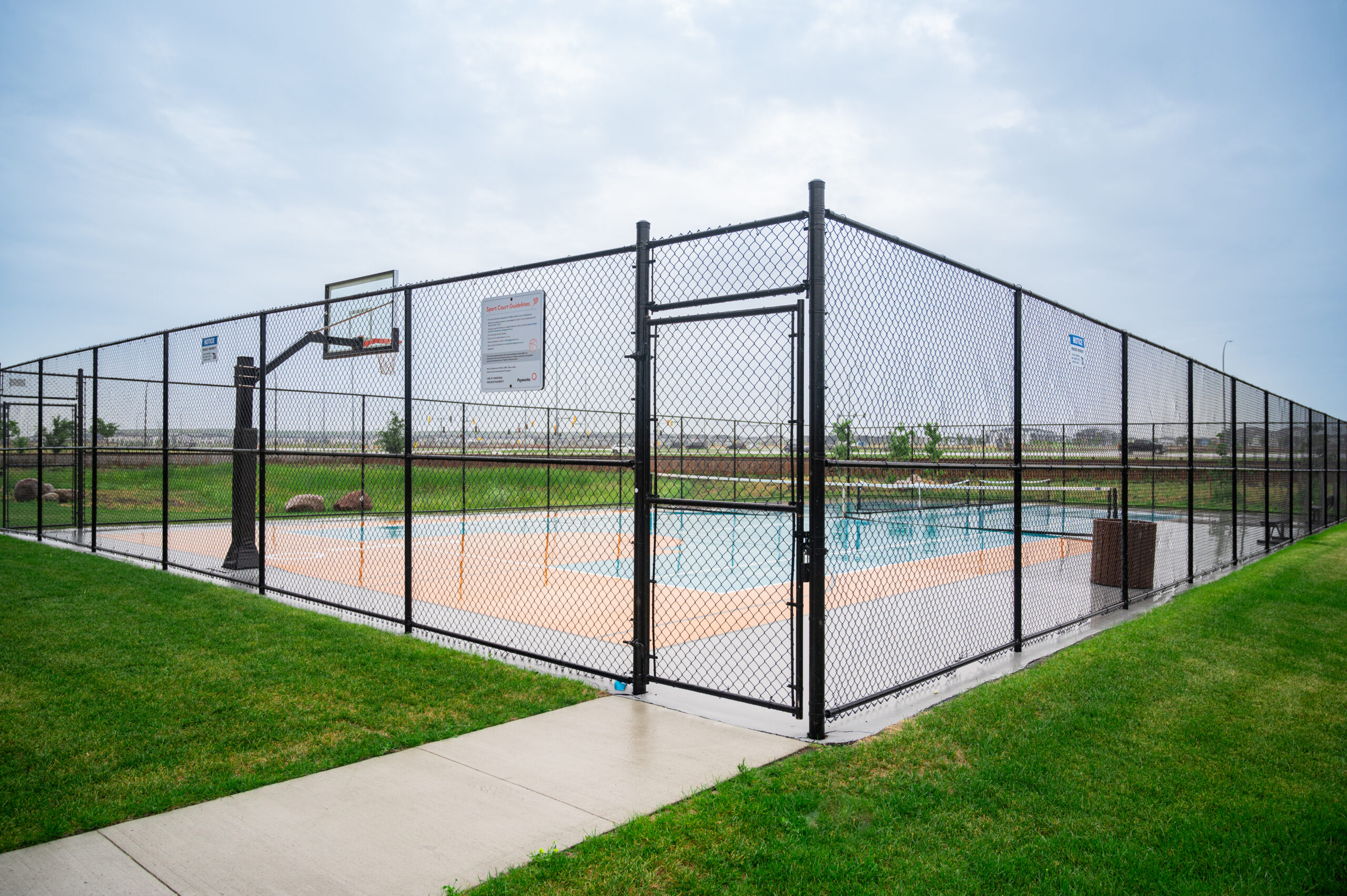

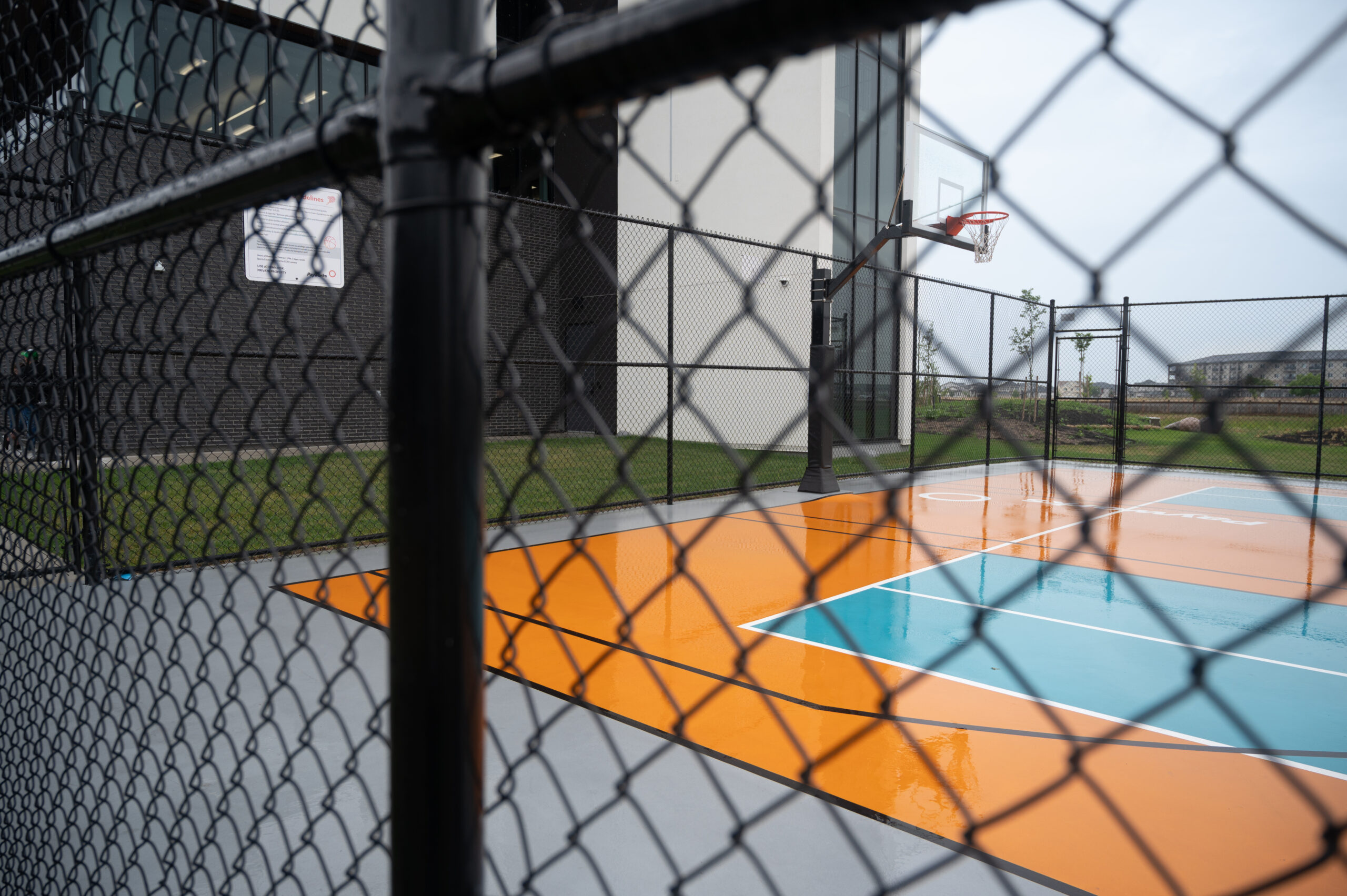

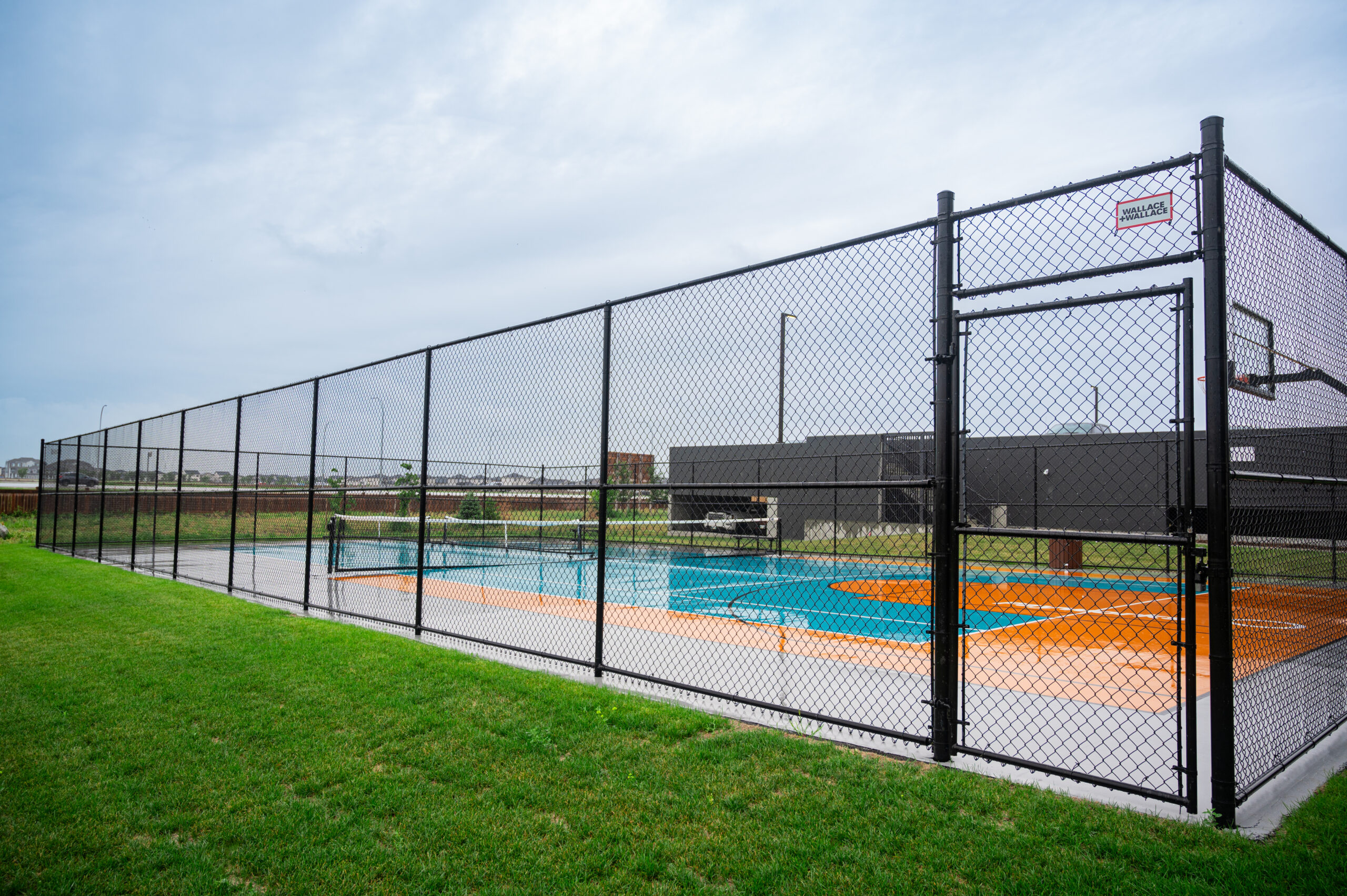

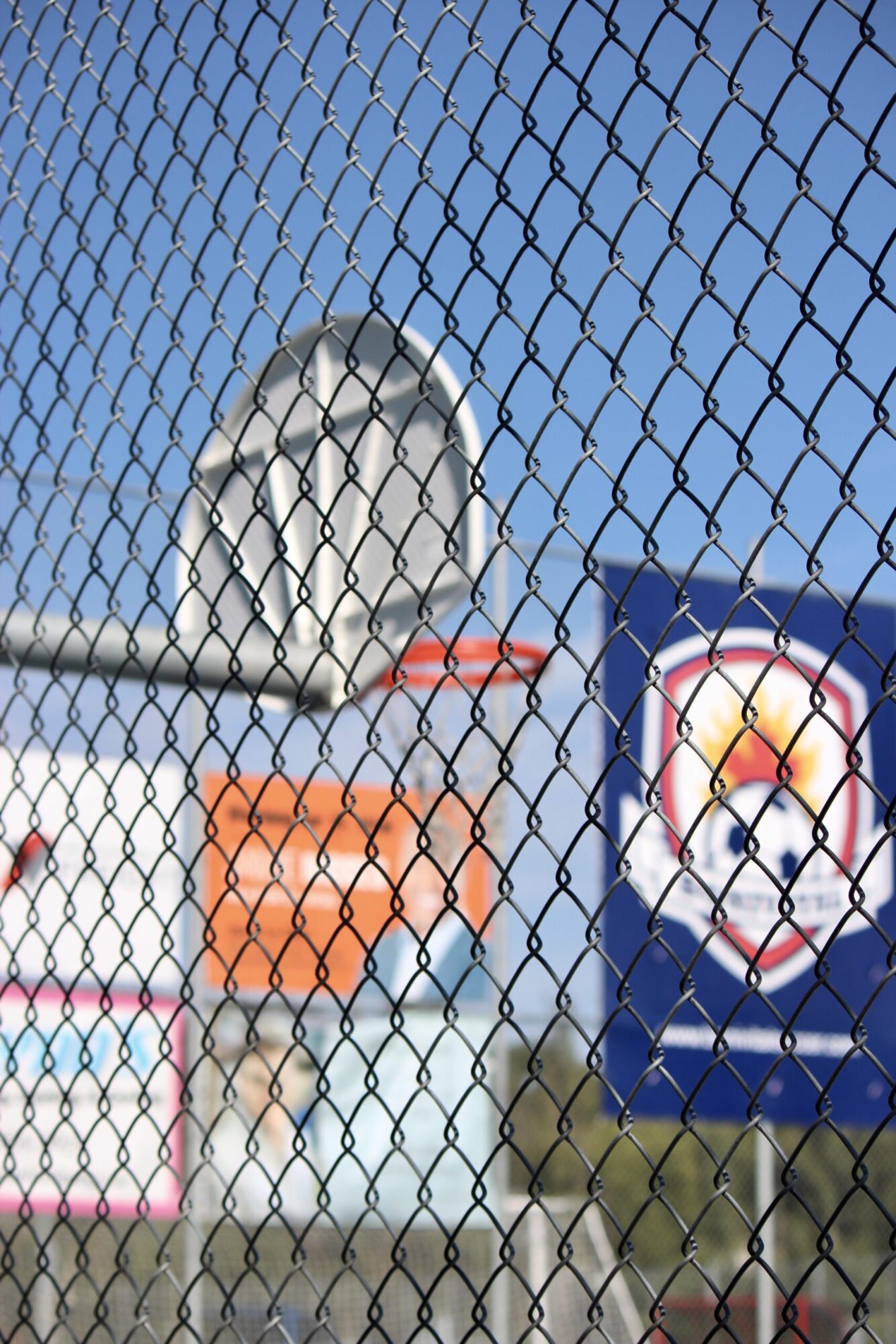

Galvanized chain link fence is a strong and durable product that is maintenance-free and is a cost-effective way to add security and determine property lines. Our experience and knowledge extend into recreational and specialty applications including School Yards, Cemeteries, Community Parks, Baseball Diamonds & Backstops, Hockey Rinks, Tennis Courts and Golf Courses. We are proud to work with local, Northwestern Ontario and Northern communities on various projects that enhance facilities enjoyed by many. Our experienced staff will provide support in design, budget and requirements suited for your project.
If you are looking for reliable commercial chain link fencing in Winnipeg, Wallace Fences has you covered with durable and cost-effective solutions.
Features
- Assists in controlling and screening entries to secured areas
- Framework is manufactured from hot dip galvanized (corrosion resistant) steel pipe
- Mesh is manufactured from heavy gauge galvanized wire
- Rigid, flexible & durable
- Follows grade changes
- Low maintenance & cost effective
Options
- Enhance the look of your industrial chain link fence with coloured vinyl coated mesh and framework
- Our Special Projects division is equipped to assist with unique additions and customized solutions
- Please take the time to check out our gallery which highlights some of our completed work
Technical Specifications
Gauge: Refers to the diameter of the wire used to produce the fabric; the higher the gauge number the smaller the wire diameter.

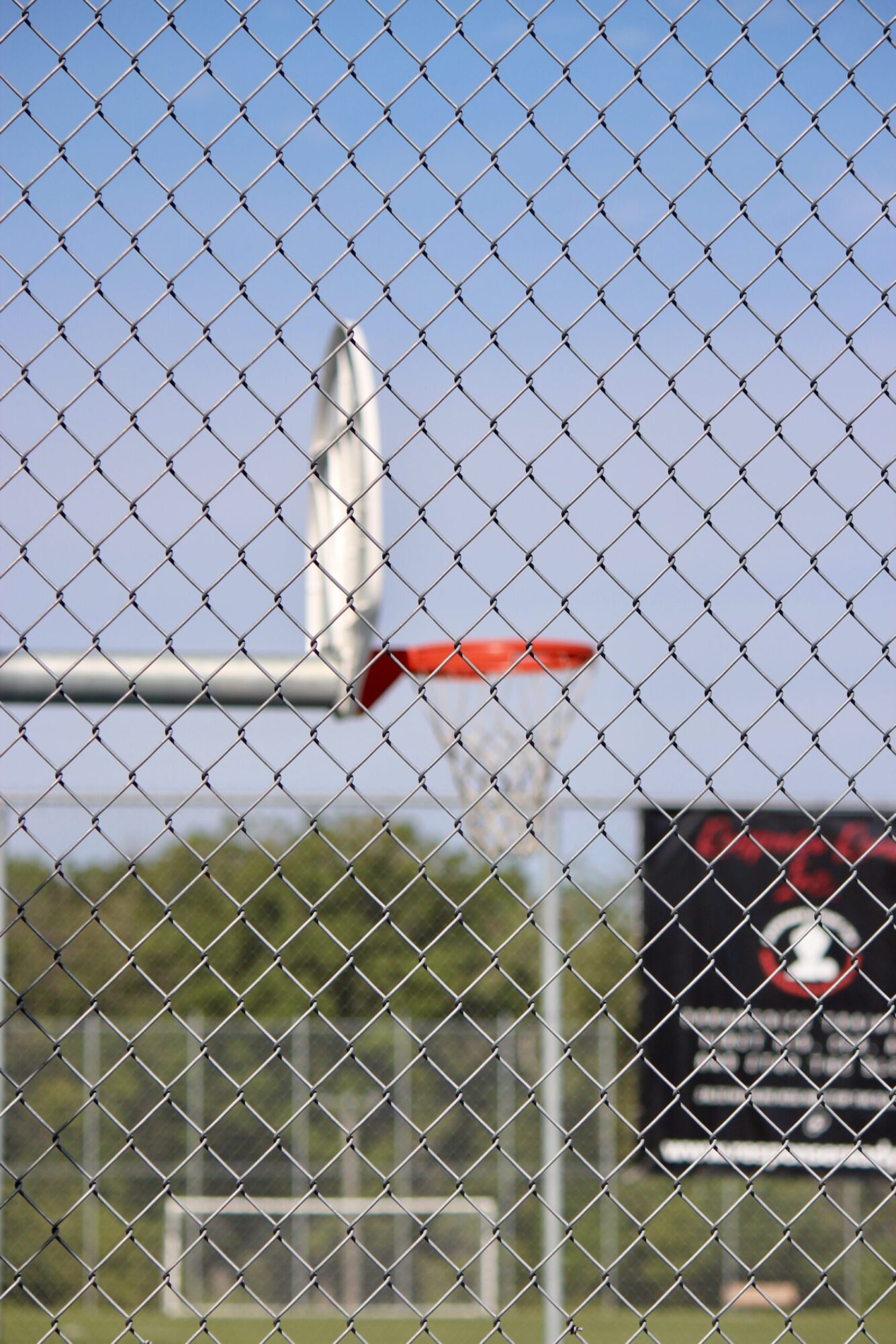

Mesh Size: Is the clear distance between parallel wires forming a diamond; the smaller the mesh size, the tighter the fabric
Selvage: Refers to the way the individual ends of the wire are finished after being woven together. The wire can be “knuckled” to avoid sharp ends or “Twisted” when more security is required.
Recreational / Industrial Chain Link
| Finish | Galvanized (optional Vinyl Coat) |
| Fence Height | 4′, 5′, 6′, 7′, 8′, 10′. 12’+ |
| Chain Link Fabric | 2″ x 2″ 9 guage .134 – Commercial Standard 9 guage .145 – City Spec 6 guage – Hydro Spec |
| Selvage | Knuckle/Twist Knuckle/Knuckle |
| Spacing | 10′ on centre |
| Top Rail | 1 5/8″ / 1 11/16″ |
| Line Posts | 2 3/8″ |
| Terminal Posts (End, Gate, & Corner) | 2 7/8″ 3 1/2″ 4 1/2″ |
| Strength Options | WT-20 & WT-40 |
WT-20
WT-20 fence framework is the ideal pipe for industrial and commercial jobs. The advanced in-line coating process ensures the highest standard of corrosion resistance. WT-20 high-strength guarantees performance to meet your customers’ needs.
| Fence Industry | Decimal OD Equivalent | Pipe Wall Thickness | Weight |
|---|---|---|---|
| OD | inches / mm | inches / mm | lb/ft / kg/m |
| 1 3/8″ | 1.315 / 33.40 | 0.080 / 2.03 | 1.06 / 1.57 |
| 1 5/8″ | 1.660 / 42.16 | 0.085 / 2.16 | 1.43 / 2.13 |
| 1 7/8″ | 1.900 / 48.26 | 0.090 / 2.29 | 1.74 / 2.59 |
| 2 3/8″ | 2.375 / 60.33 | 0.095 / 2.41 | 2.32 / 3.45 |
| 2 7/8″ | 2.875 / 73.03 | 0.110 / 2.79 | 3.25 / 4.84 |
WT-40
The strength and corrosion characteristics of WT-40 fence pipe have been tested, documented and certified by independent testing agencies to ensure complete compliance with ASTM F1043, Group 1C, and AASHTO M181. WT-40 fence framework meets or exceeds the most demanding specifications and codes imposed by private, independent, and government agencies.
| Fence Industry | Decimal OD Equivalent | Pipe Wall Thickness | Weight |
|---|---|---|---|
| OD | inches / mm | inches / mm | lb/ft / kg/m |
| 1 5/8″ | 1.660 / 42.16 | 0.111 / 2.82 | 1.84 / 2.74 |
| 1 7/8″ | 1.900 / 48.26 | 0.120 / 3.05 | 2.28 / 3.39 |
| 2 3/8″ | 2.375 / 60.33 | 0.130 / 3.30 | 3.12 / 4.64 |
| 2 7/8″ | 2.875 / 73.03 | 0.160 / 4.06 | 4.64 / 6.91 |
| 3 1/2″ | 3.500 / 88.90 | 0.160 / 4.06 | 5.71 / 8.50 |
