Industrial Chain Link Fences Winnipeg
Chain Link for Commercial and Industrial Properties
We are Winnipeg’s only manufacturer of chain link mesh and carry a large inventory to ensure quick turnaround for your project.

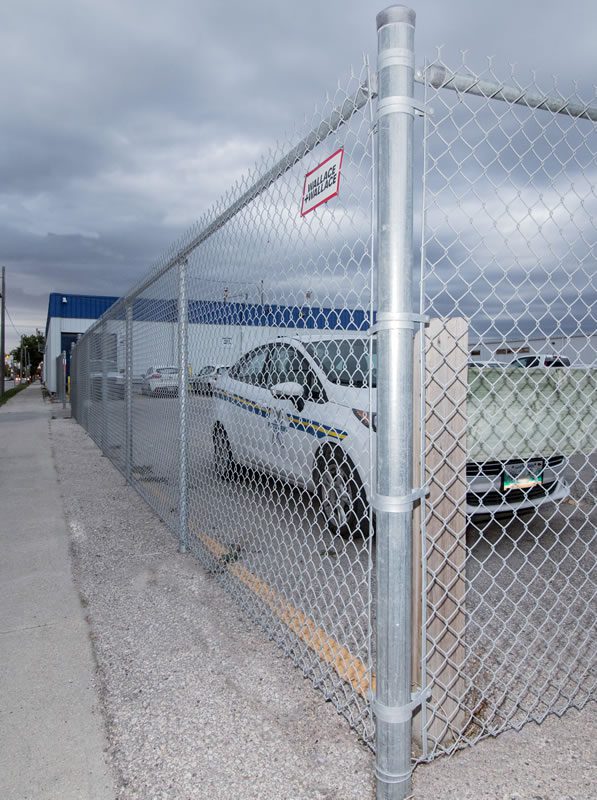

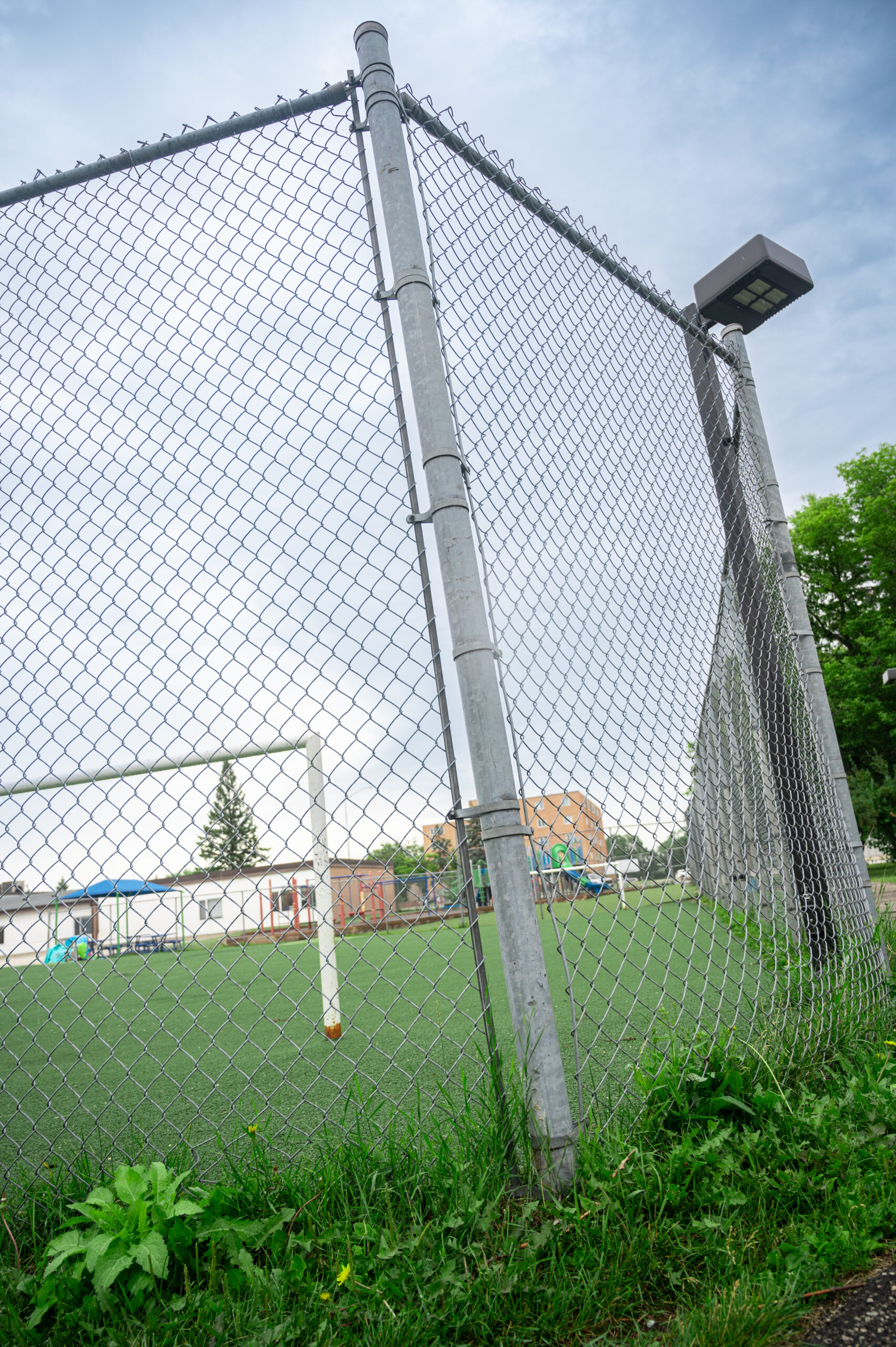

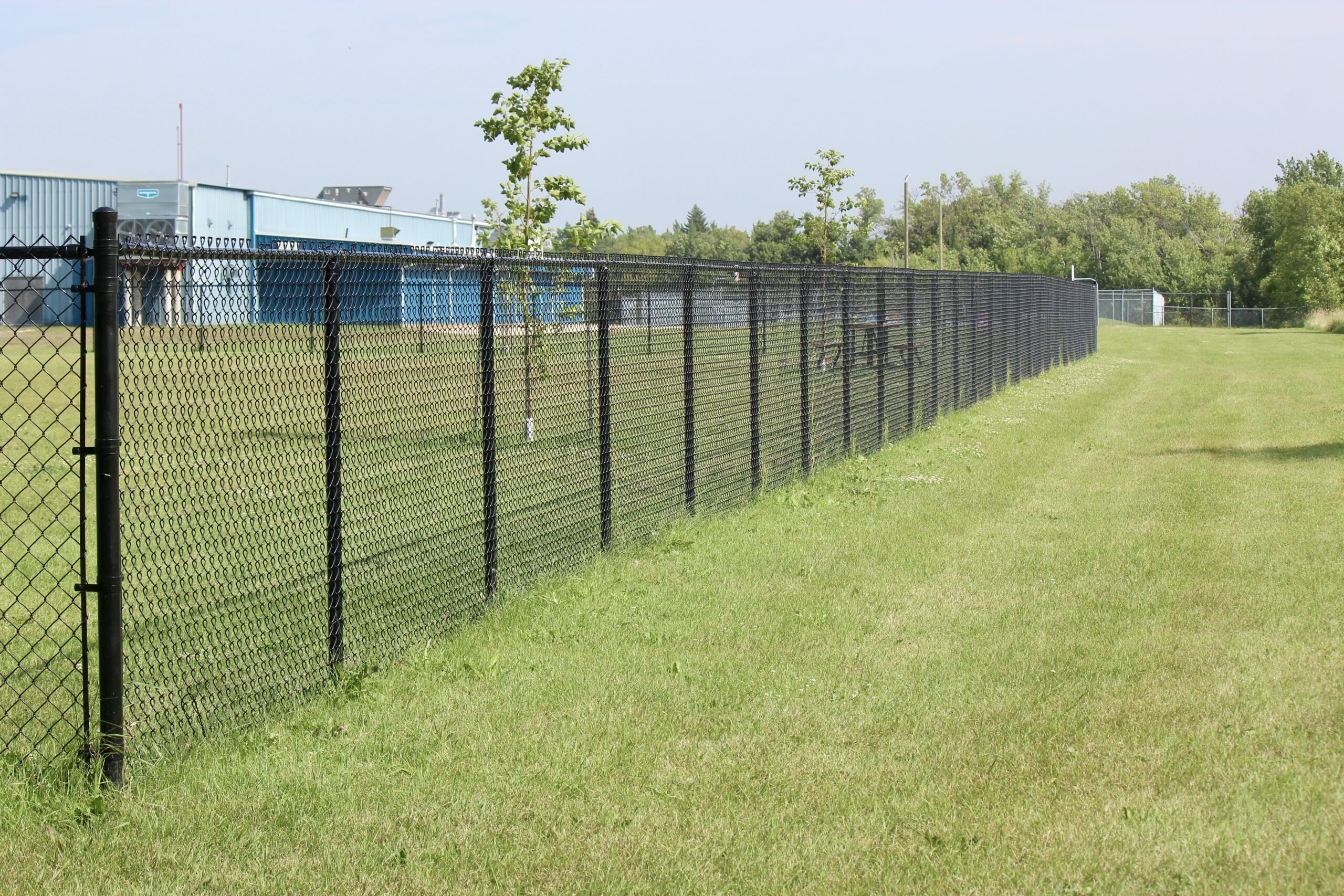

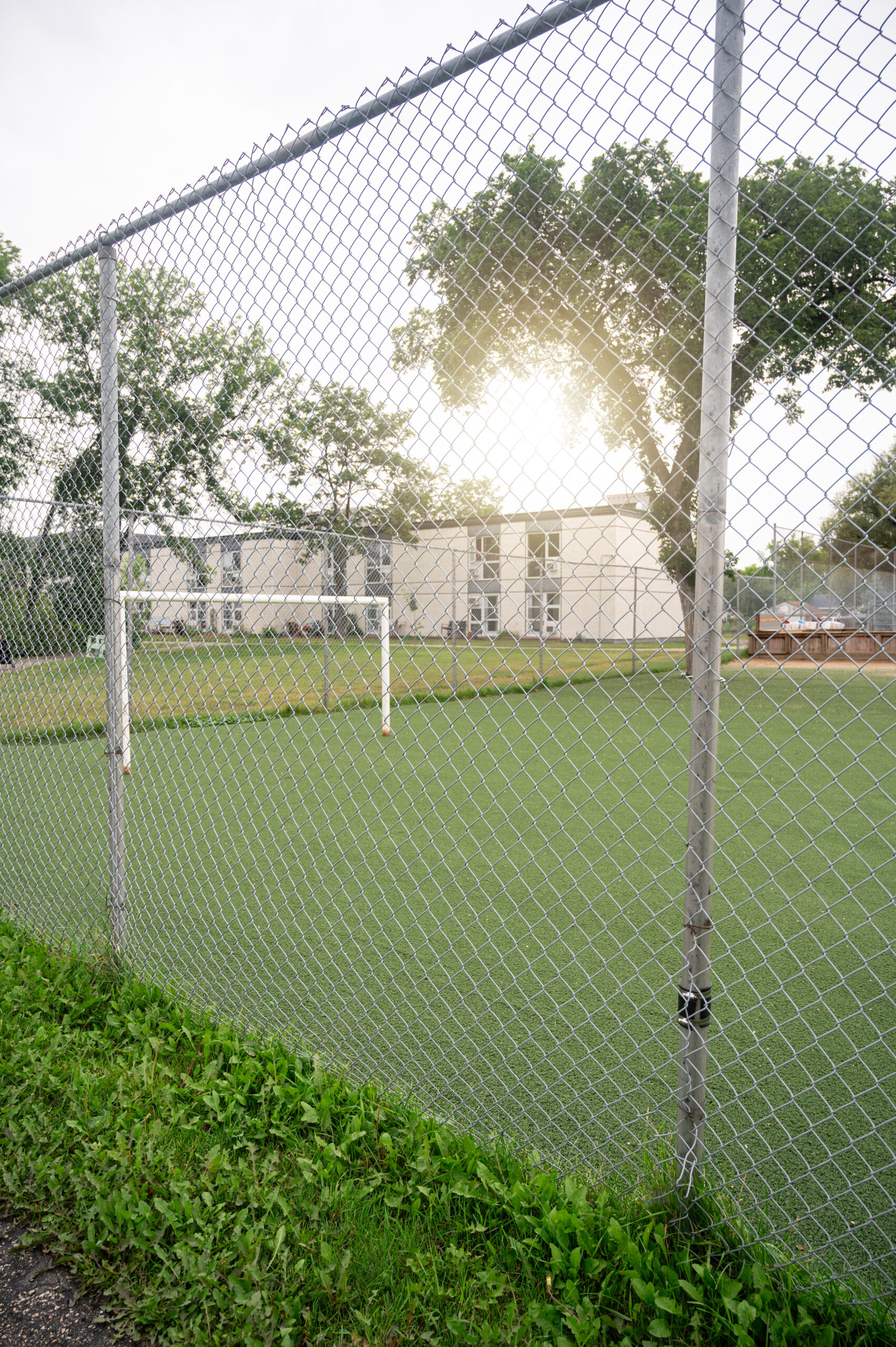

Galvanized chain link is a strong, low maintenance and long-lasting fence system to secure your property lines and protect your business. Available in lighter or heavier gauges, pipe diameters and in various heights and specifications, we are equipment to match your project’s needs. Additional security features like barbed wire are also available.
Speak to one of our Sales & Project Management Consultants today.
Features
- Framework is manufactured from hot dip galvanized (corrosion resistant) steel pipe
- Mesh is manufactured from heavy gauge galvanized wire
- Rigid, flexible & durable
- Follows grade changes
- Low maintenance & cost effective
- Custom welded posts are available for fencing solutions required on existing concrete, inside compounds, storage solutions, etc.
Options
- Adding barbed wire to your chain-link fence will maximize your security

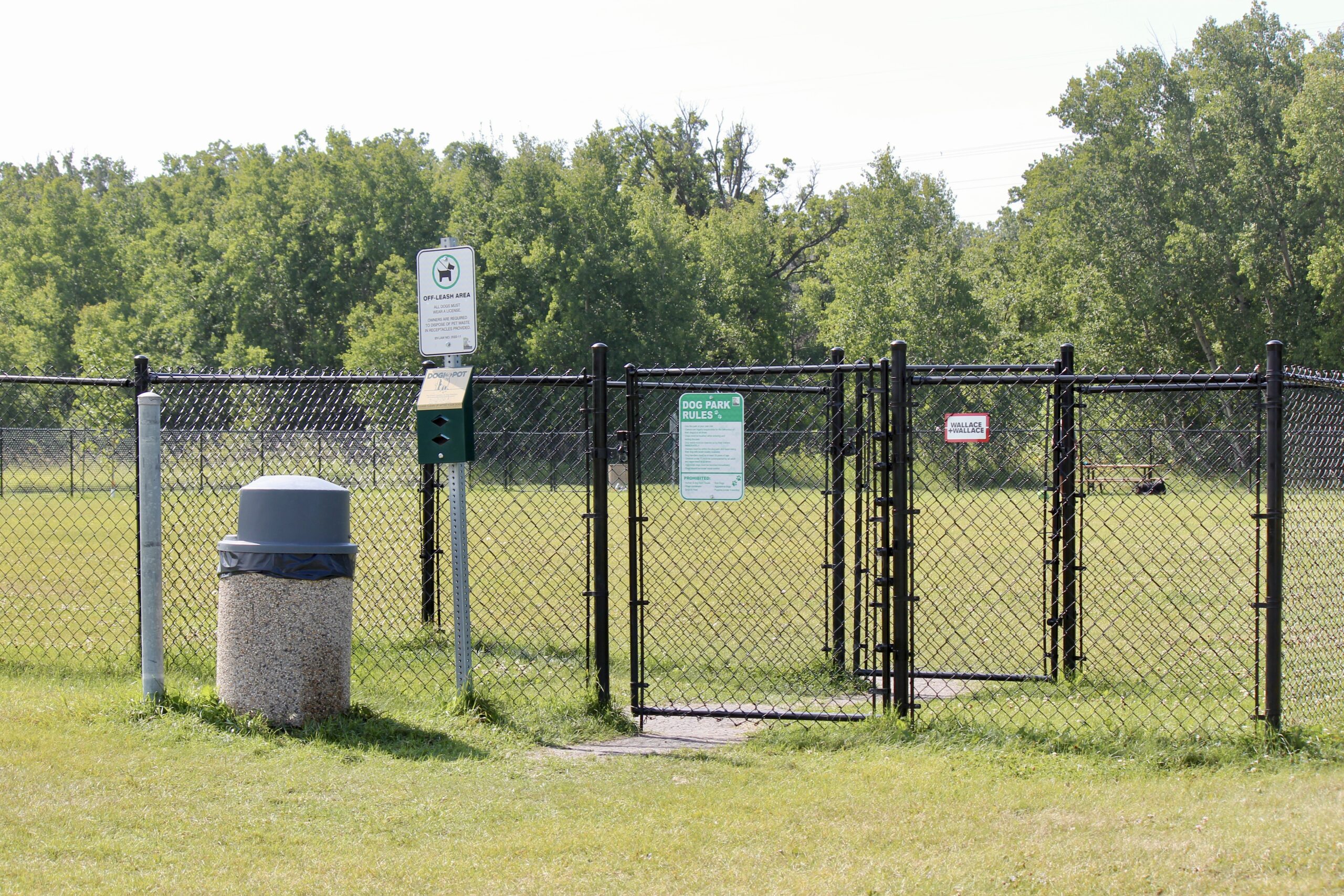

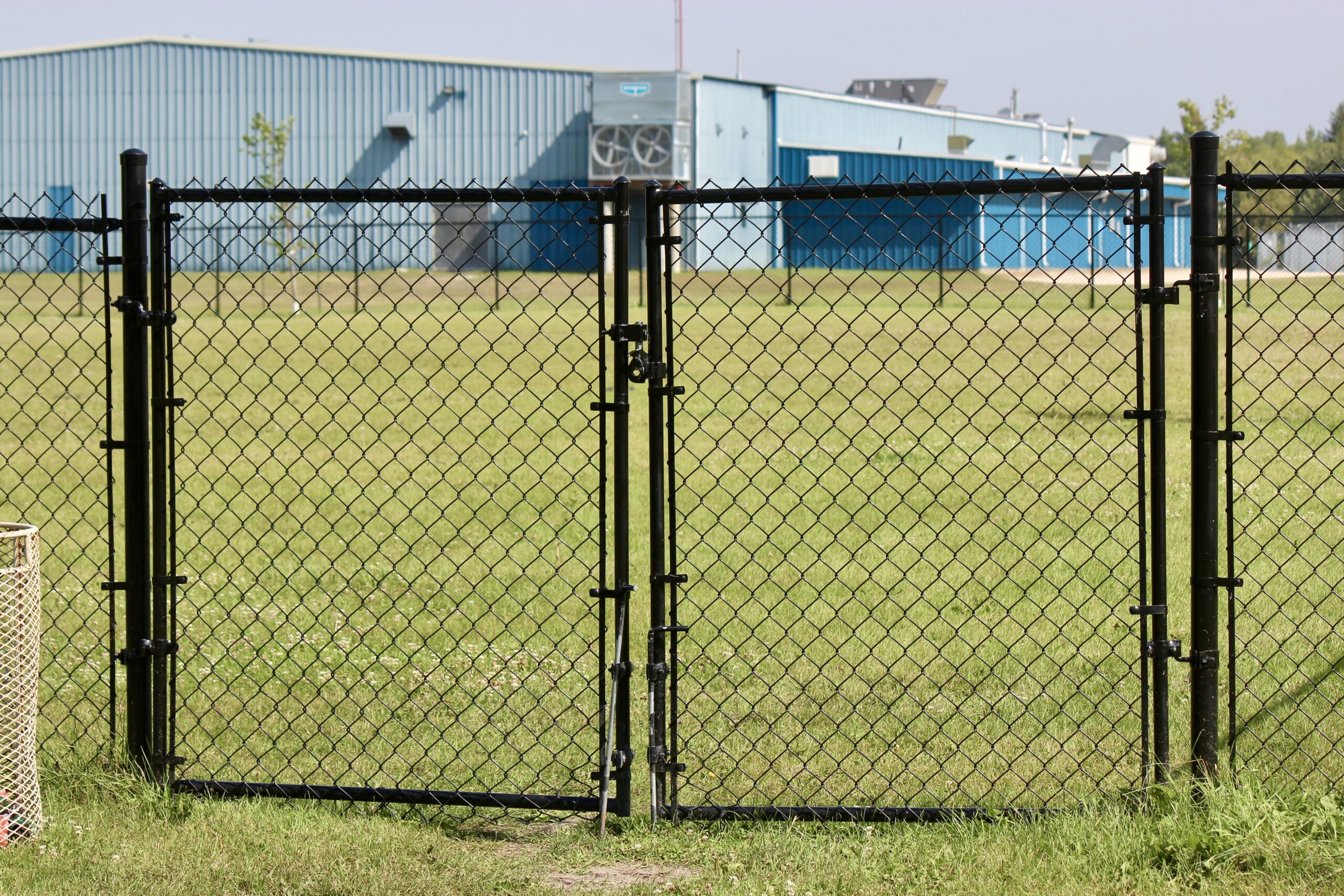

- Visit our “Commercial Gates” section to review the different options available for your project
- We also offer a range of Automated Gates to help you get in and out of your property with ease

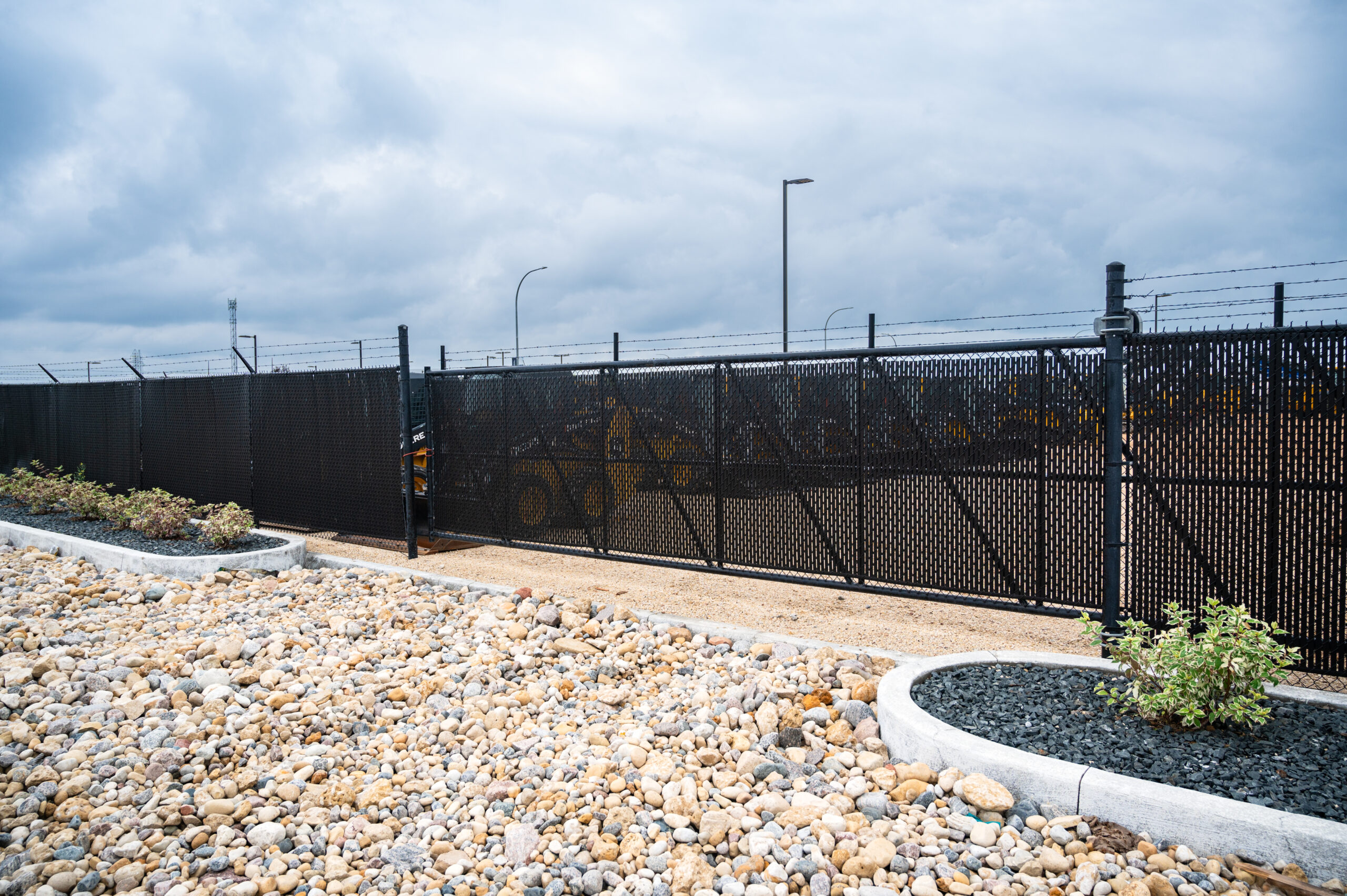

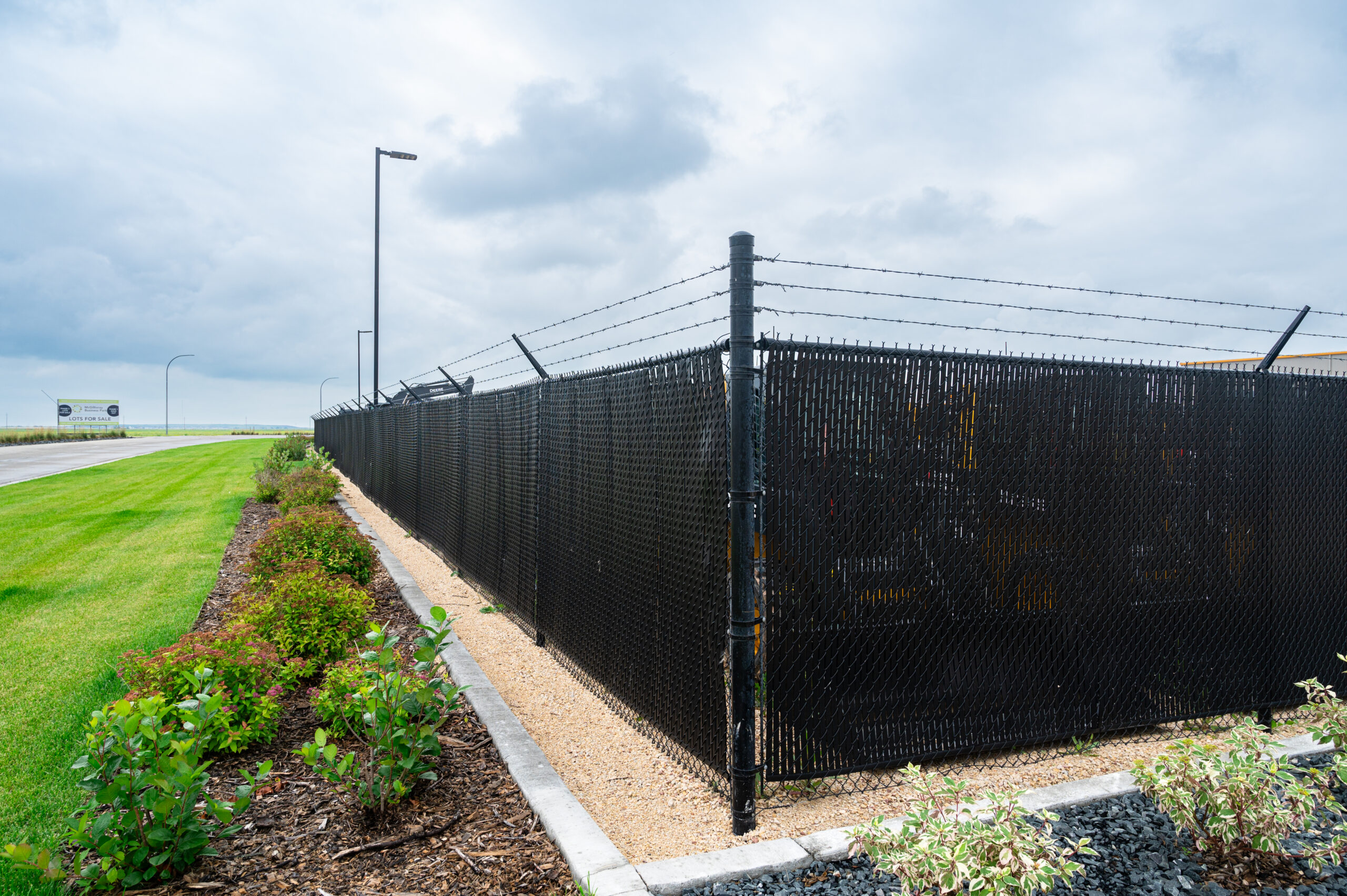

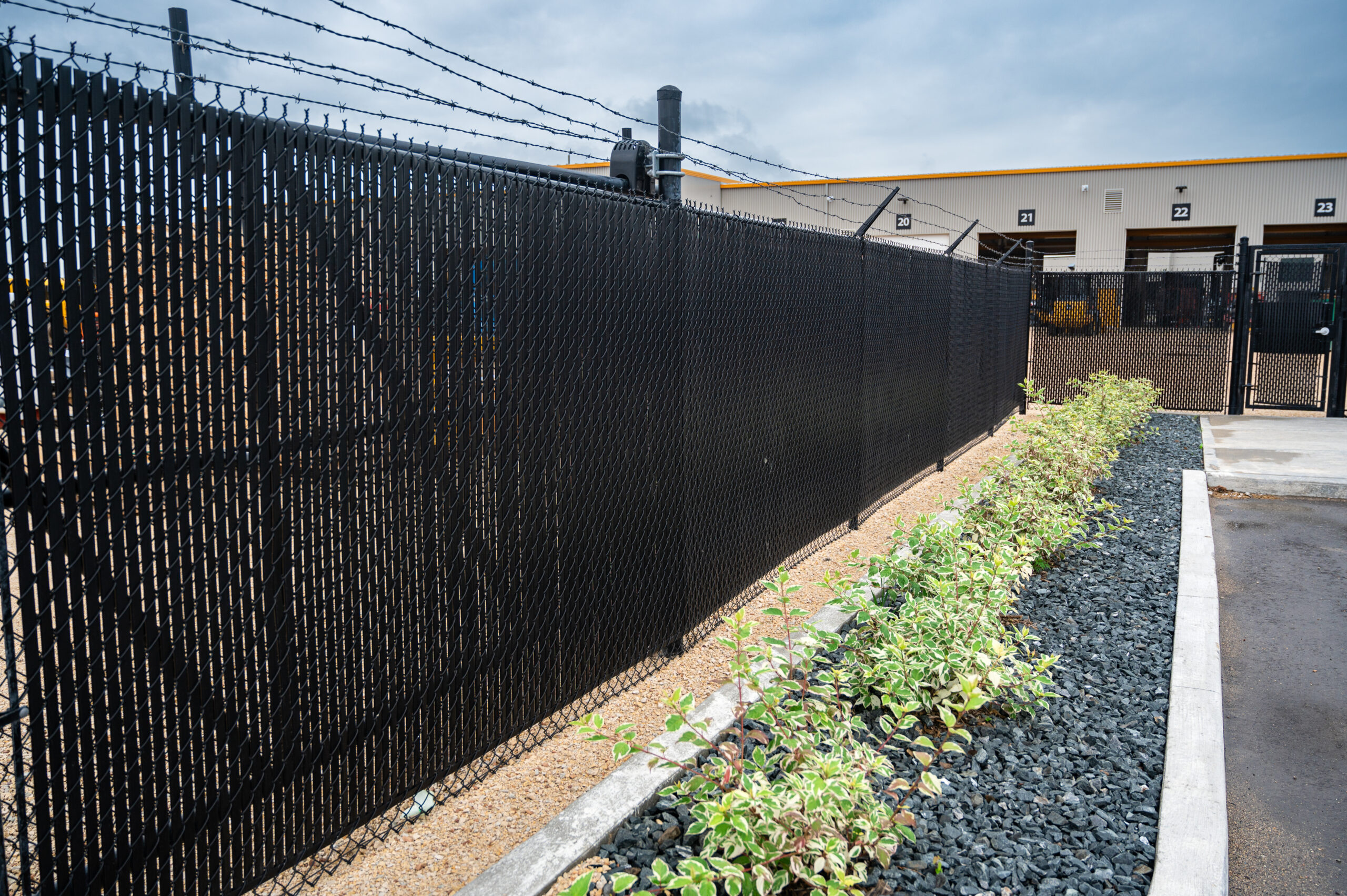

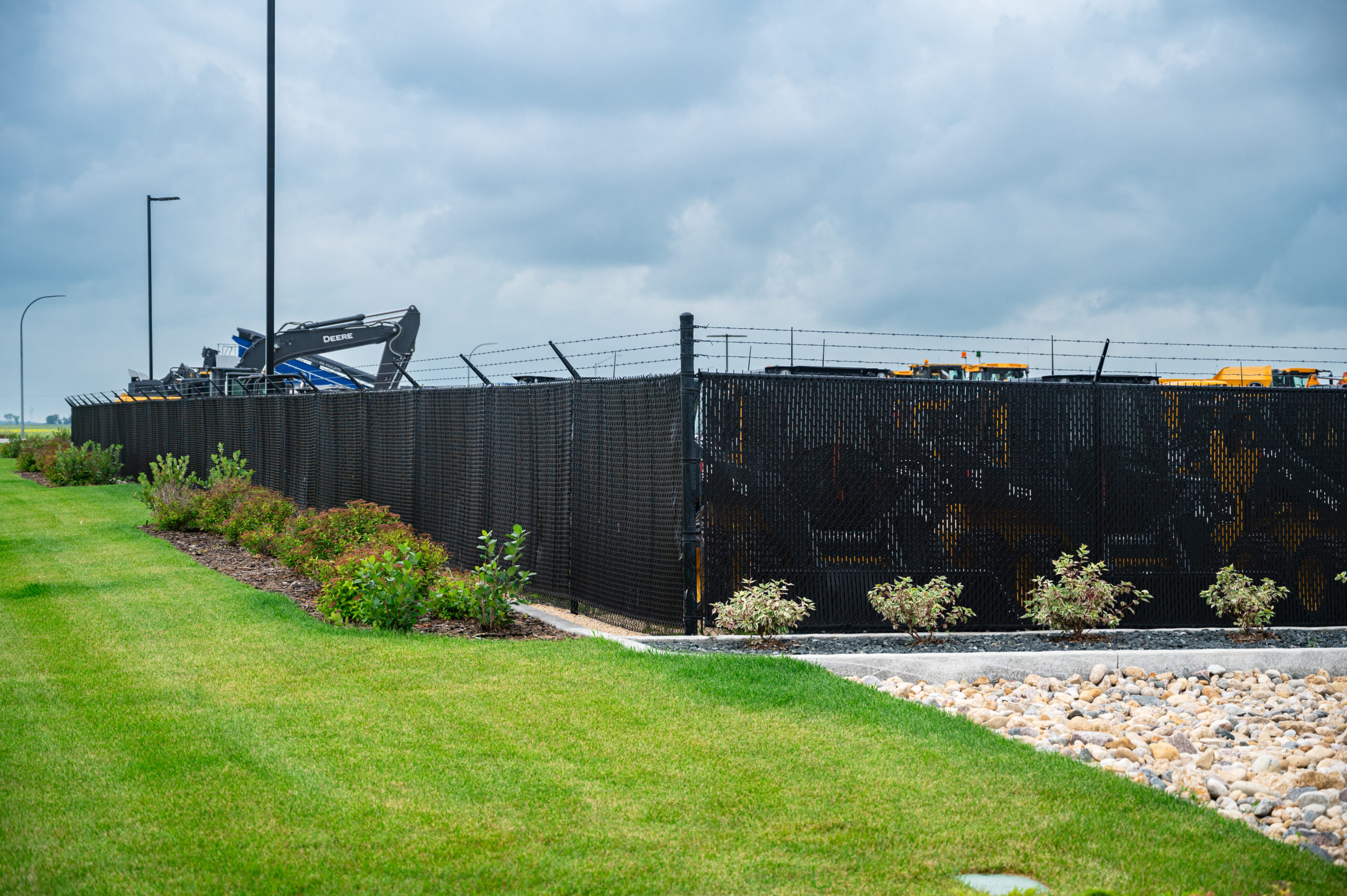

- For added privacy, specially designed Privacy Slats can be inserted into the chain-link mesh
- Concerned about trespassers with heavy tools to cut through your fence? Welded wire is the perfect solution for areas in need of extra resilience. Cutting through welded mesh is time-consuming and difficult.
Technical Specifications
Gauge: Refers to the diameter of the wire used to produce the fabric; the higher the gauge number the smaller the wire diameter.

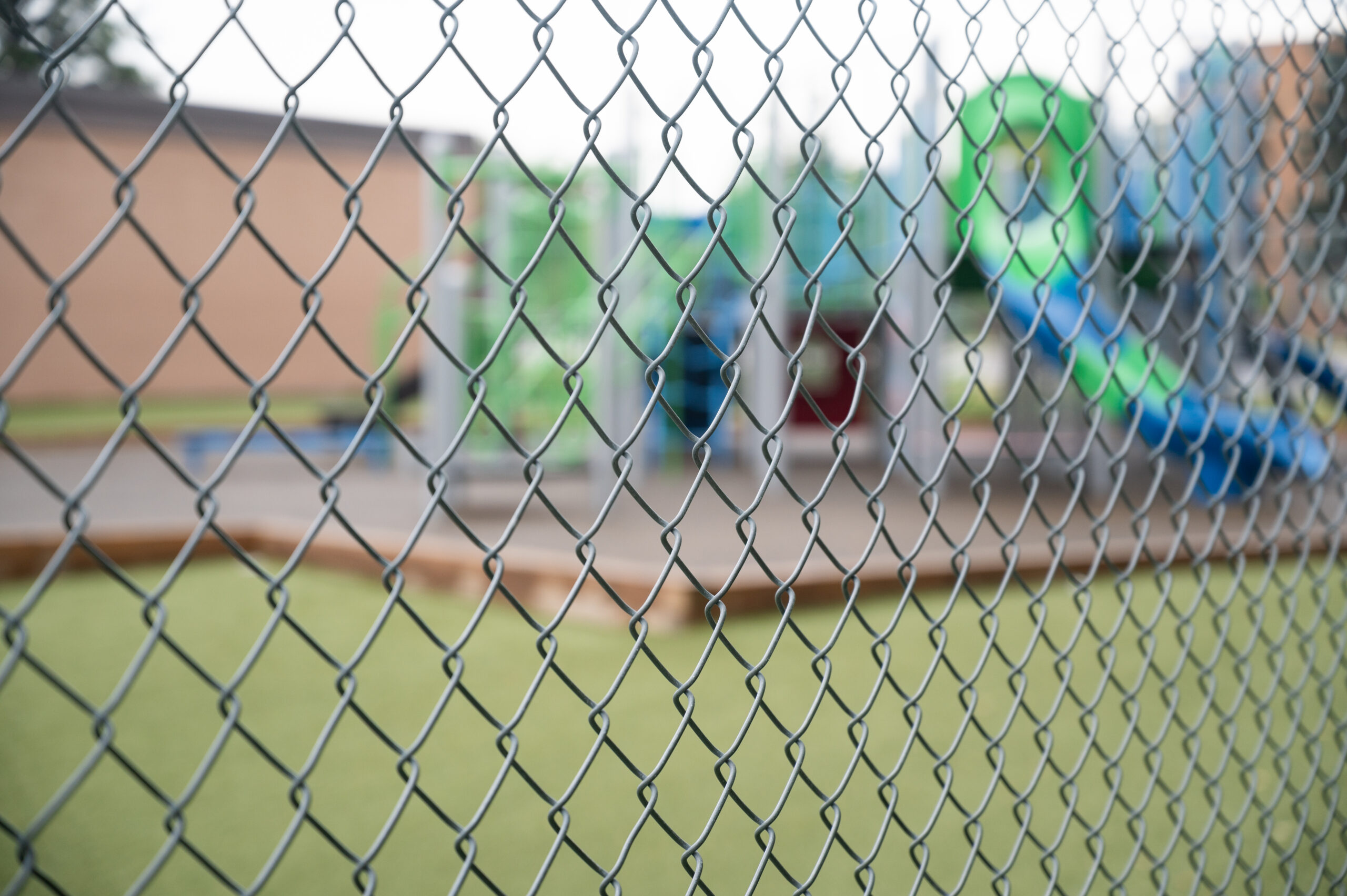

Mesh Size: Is the clear distance between parallel wires forming a diamond; the smaller the mesh size, the tighter the fabric
Selvage: Refers to the way the individual ends of the wire are finished after being woven together. The wire can be “knuckled” to avoid sharp ends or “Twisted” when more security is required.
Recreational / Industrial Chain Link

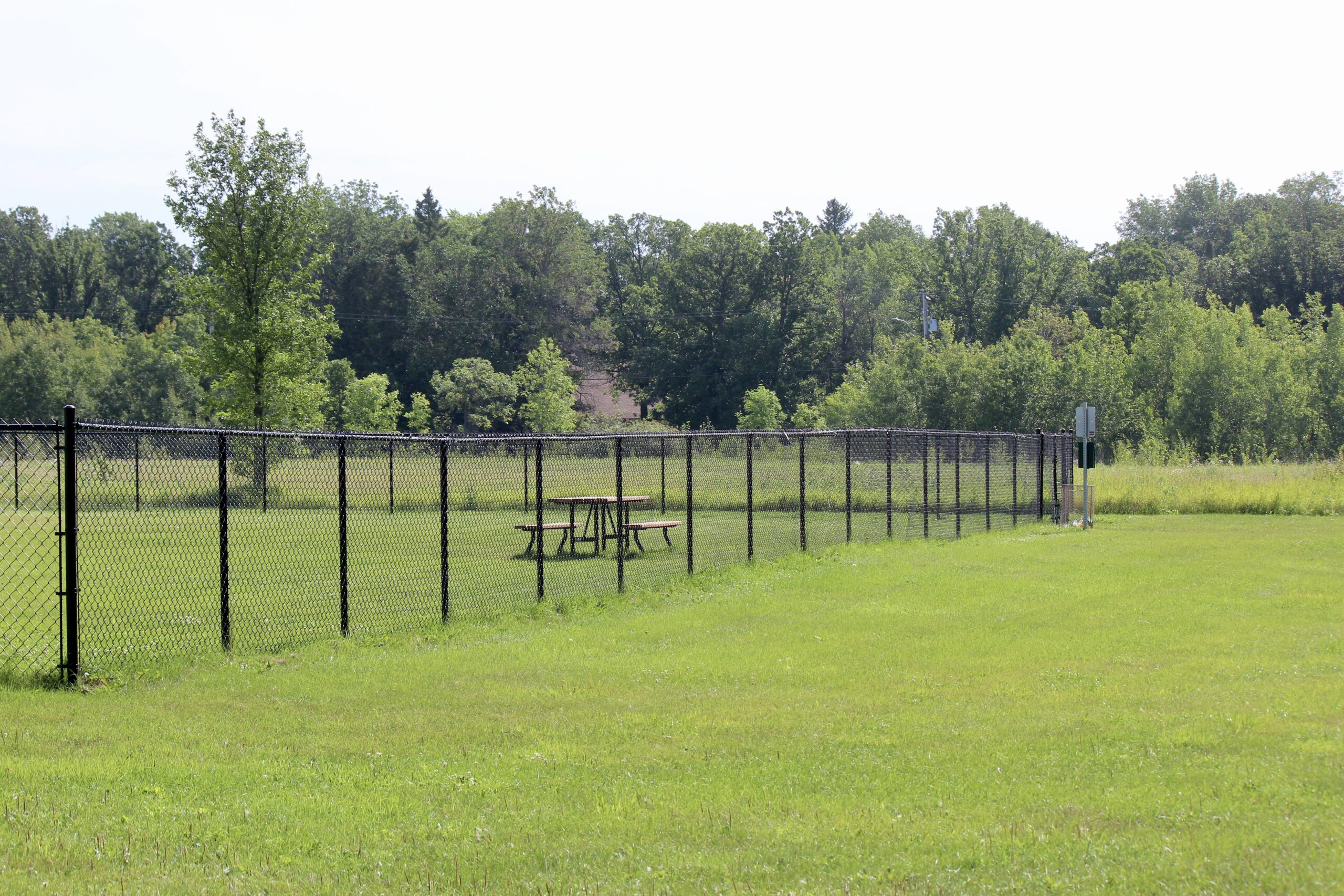

| Finish | Galvanized (optional Vinyl Coat) |
| Fence Height | 4′, 5′, 6′, 7′, 8′, 10′. 12’+ |
| Chain Link Fabric | 2″ x 2″ 9 gauge .134 – Commercial Standard 9 gauge .145 – City Spec 9 gauge – Hydro Spec (1 ¾” diameter) |
| Selvage | Knuckle/Twist Knuckle/Knuckle |
| Spacing | 10′ on center |
| Top Rail | 1 5/8″ / 1 11/16″ |
| Line Posts | 2 3/8″ |
| Terminal Posts (End, Gate, & Corner) | 2 7/8″ 3 1/2″ 4 1/2″ |
| Strength Options | WT-20 & WT-40 |
WT-20
WT-20 fence framework is the ideal pipe for industrial and commercial jobs. The advanced in-line coating process ensures the highest standard of corrosion resistance. WT-20 high-strength guarantees performance to meet your customers’ needs.
| Fence Industry | Decimal OD Equivalent | Pipe Wall Thickness | Weight |
|---|---|---|---|
| OD | inches / mm | inches / mm | lb/ft / kg/m |
| 1 3/8″ | 1.315 / 33.40 | 0.080 / 2.03 | 1.06 / 1.57 |
| 1 5/8″ | 1.660 / 42.16 | 0.085 / 2.16 | 1.43 / 2.13 |
| 1 7/8″ | 1.900 / 48.26 | 0.090 / 2.29 | 1.74 / 2.59 |
| 2 3/8″ | 2.375 / 60.33 | 0.095 / 2.41 | 2.32 / 3.45 |
| 2 7/8″ | 2.875 / 73.03 | 0.110 / 2.79 | 3.25 / 4.84 |
WT-40
The strength and corrosion characteristics of WT-40 fence pipe have been tested, documented and certified by independent testing agencies to ensure complete compliance with ASTM F1043, Group 1C, and AASHTO M181. WT-40 fence framework meets or exceeds the most demanding specifications and codes imposed by private, independent, and government agencies.
| Fence Industry | Decimal OD Equivalent | Pipe Wall Thickness | Weight |
|---|---|---|---|
| OD | inches / mm | inches / mm | lb/ft / kg/m |
| 1 5/8″ | 1.660 / 42.16 | 0.111 / 2.82 | 1.84 / 2.74 |
| 1 7/8″ | 1.900 / 48.26 | 0.120 / 3.05 | 2.28 / 3.39 |
| 2 3/8″ | 2.375 / 60.33 | 0.130 / 3.30 | 3.12 / 4.64 |
| 2 7/8″ | 2.875 / 73.03 | 0.160 / 4.06 | 4.64 / 6.91 |
| 3 1/2″ | 3.500 / 88.90 | 0.160 / 4.06 | 5.71 / 8.50 |
